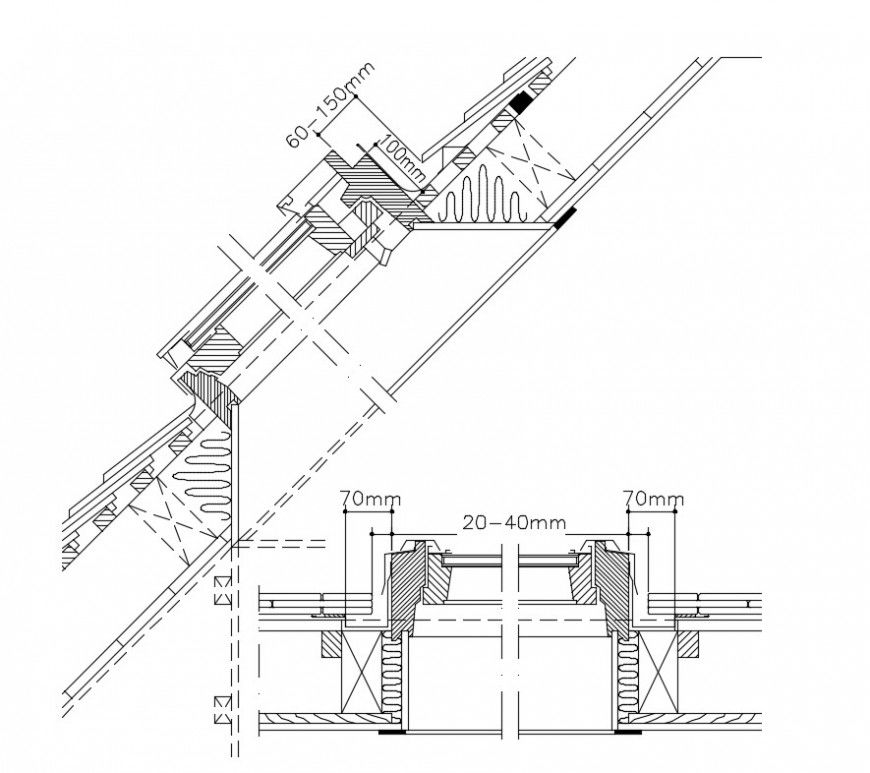

Window veluxtipe framing and installation drawing details dwg file

Window veluxtipe framing and installation drawing details that includes welded plate for grappling the clamp, double swing handle (with placement accessories) with reinforcement rib and expanded metal and ceramic block details, ceramic with block, lintel 2 irons with wood cap and frame and much more of window installation details.
