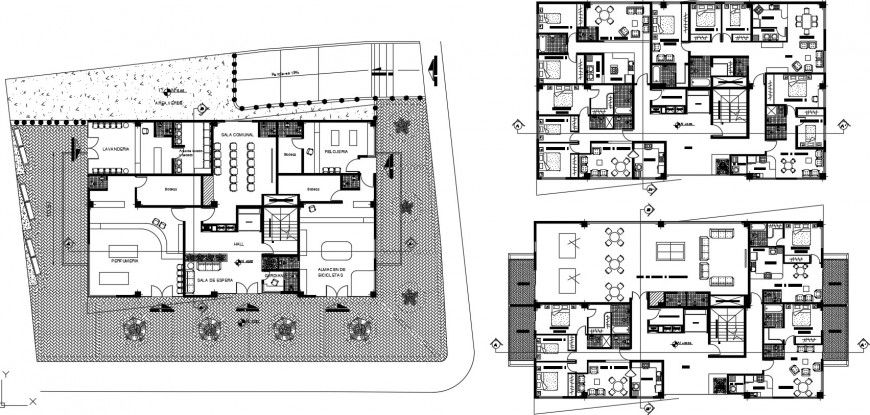

High rise mixed office building floor plan distribution details dwg file


Description

High rise mixed office building floor plan distribution details that includes a detailed view of reception area with waiting area and cabin and  computer lab with counseling room and library and conference room details, manager cabin and meeting room, cleaning department with departmental office, smoking area, head offices, accountant rooms and pantry, kitchen and dining area, server room and meeting room and pantry and much more of office building details.




File Type: DWG File ID: 88380

Uploaded by:


Eiz Luna
New-Zealand
