Industrial Pipe Support Detail 2x3x1 by 4 Steel Profile 3 by 8 Rod

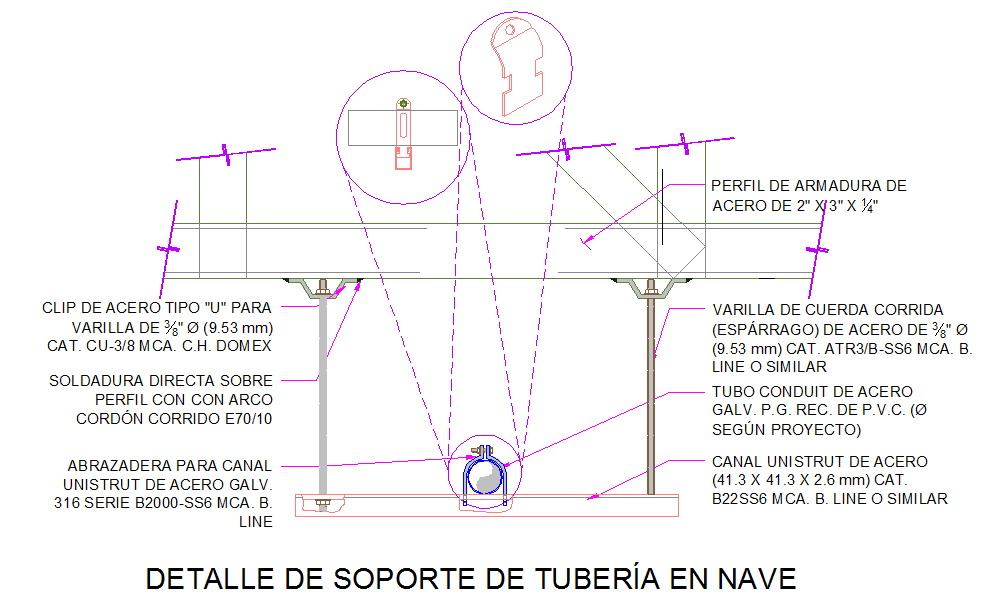

This AutoCAD pipe support detail drawing presents a complete pipe support system designed for industrial nave installation using 2x3x1 by 4 inch steel armature profile and 3 by 8 inch diameter threaded rod 9.53 mm. The section clearly illustrates a U-type steel clip for a 3 by 8 inch rod category CU 3 by 8 CH DOMEX, direct welding over steel profile with E70 10 continuous cord, and an adjustable arc support configuration. The drawing also specifies galvanized steel conduit pipe routing according to project diameter and includes precise alignment between the upper steel beam and lower support channel.
