Kitchen Furniture Detail 4550mm Modular Cabinet Counter Plan

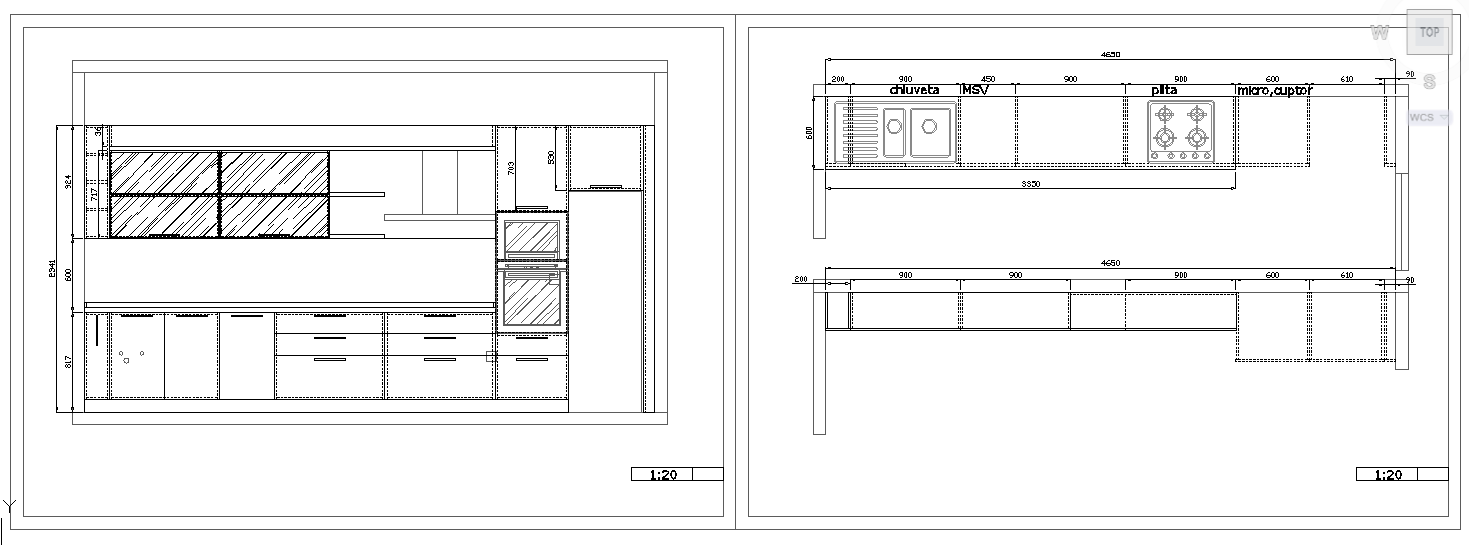

Kitchen Furniture Detail 4550mm Counter Layout Plan presents a complete modular kitchen drawing with front elevation and plan view at 1:20 scale. The layout shows an overall counter length of 4550mm with segmented modules of 900mm, 450mm, 600m,m and 610mm clearly dimensioned. The design includes sink position marked as Chuveta cooktop area micro ondas space, and a built-in oven unit. Upper cabinet, lower storage unit,s drawers, and shutter details are fully measured with working height levels and vertical clearances defined for fabrication accuracy.
