13.2 kV Transformer Pole Primary Distribution Structure Detail

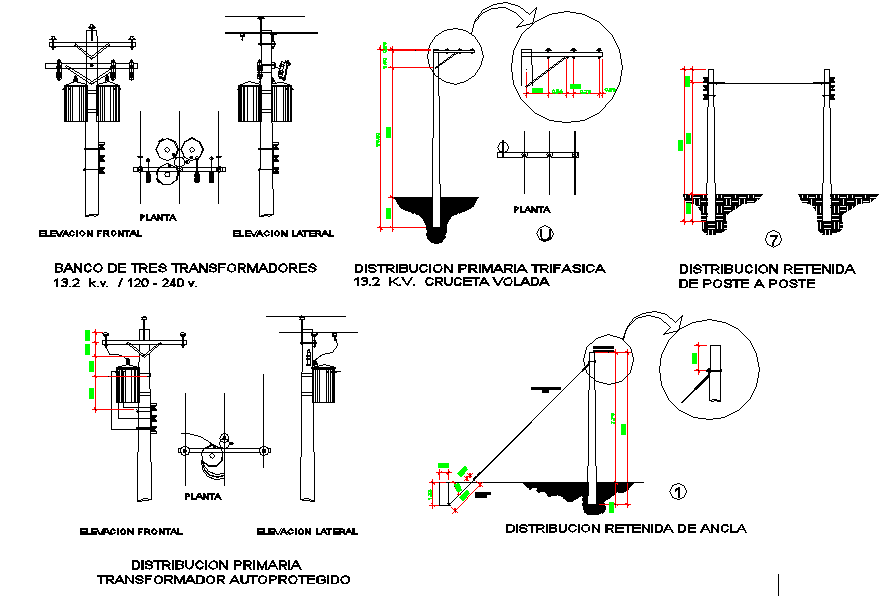

This electrical layout drawing presents a complete 13.2 kV transformer installation with detailed transformer pole and primary distribution configurations. The file includes banco de tres transformadores 13.2 kV 120 240 V arrangement with elevation frontal and elevation lateral views, clearly showing mounting height, cross arm positioning, conductor spacing, and equipment alignment. It also covers distribucion primaria trifasica 13.2 kV cruceta volada with accurate dimensional annotations for pole depth, foundation section, and structural fixing details. The plan views illustrate conductor routing, insulation clearances, and structural stability measurements for safe electrical transmission design.
