Building Structural Framing Plan Elevation and Section Detail

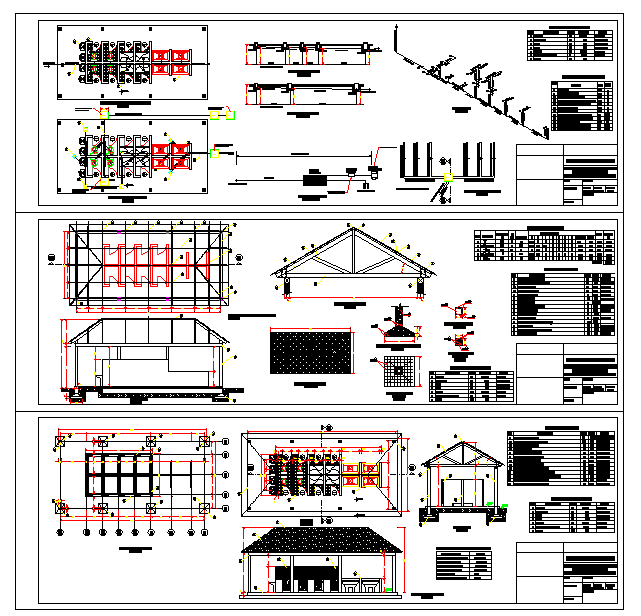

This building structural framing drawing presents a complete plan, elevation, and section detail layout with clearly defined grid lines, column positions, and beam connections. The file includes foundation layout with footing dimensions, column reinforcement references, and slab thickness indications for accurate structural execution. Roof truss section detail is illustrated with slope alignment, ridge connection, and support spacing, ensuring proper load transfer. Front elevation and side elevation views show wall height, roof profile, opening placement, and structural proportions. Plan views highlight column spacing, beam layout, and structural framing coordination across the building footprint.
