AutoCAD Machinery 3D CAD Drawing for Modern Factory Layout Design

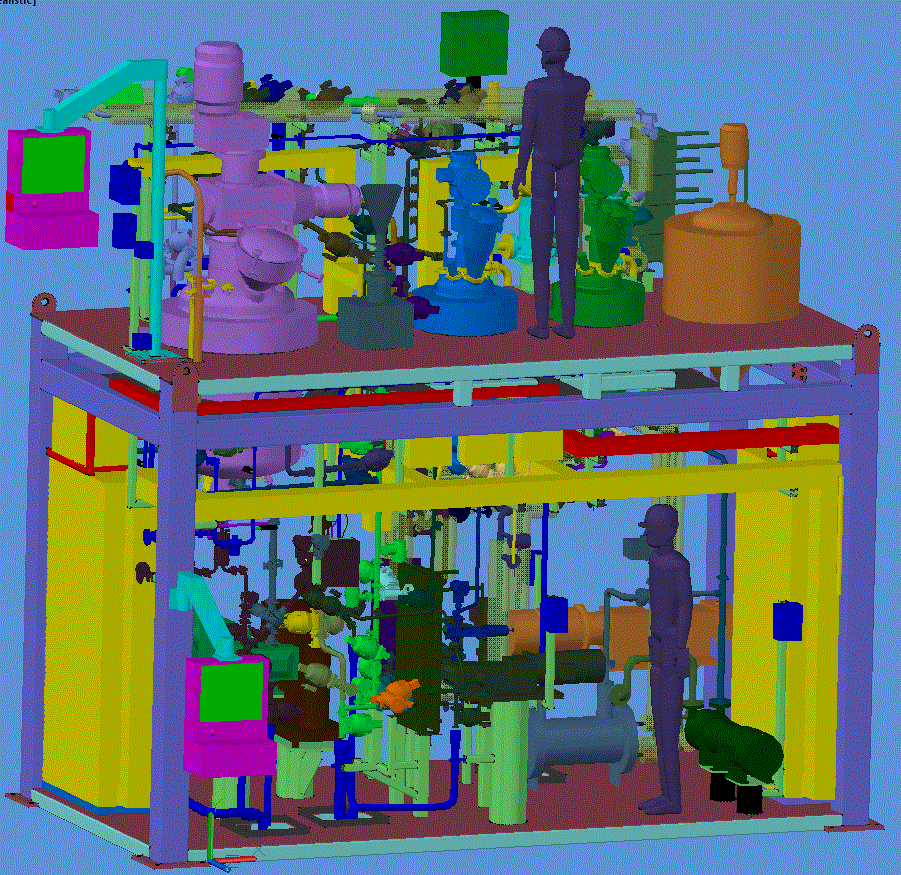

This Factory 3D Machine DWG Drawing file provides a detailed 3D model of industrial machinery used in factory or manufacturing environments. The drawing includes a complete visualization of the machine’s structural framework, mechanical components, and functional assembly layout. Each part is accurately modeled to represent real-world proportions and operational mechanisms, making it an ideal reference for design analysis, engineering documentation, and production planning.

This 3D DWG drawing is highly beneficial for mechanical engineers, product designers, and industrial planners who need a precise and editable CAD file for factory equipment layouts. The model highlights important design aspects such as motor positioning, conveyor alignment, supporting frames, and connecting joints. It allows professionals to examine machine interactions within production systems and optimize spatial arrangements in factory settings.

The drawing is compatible with AutoCAD, SolidWorks, Revit, and other 3D design software, allowing for seamless customization and integration into larger mechanical or architectural projects. It can be used for training, design demonstrations, or prototype development. Perfect for manufacturing design studies and engineering presentations, this Factory 3D Machine DWG file saves valuable time while maintaining accuracy and professional quality.
