Slab Design DWG 1.20x1.40x0.30m VT-TB with Polystyrene Bovedilla

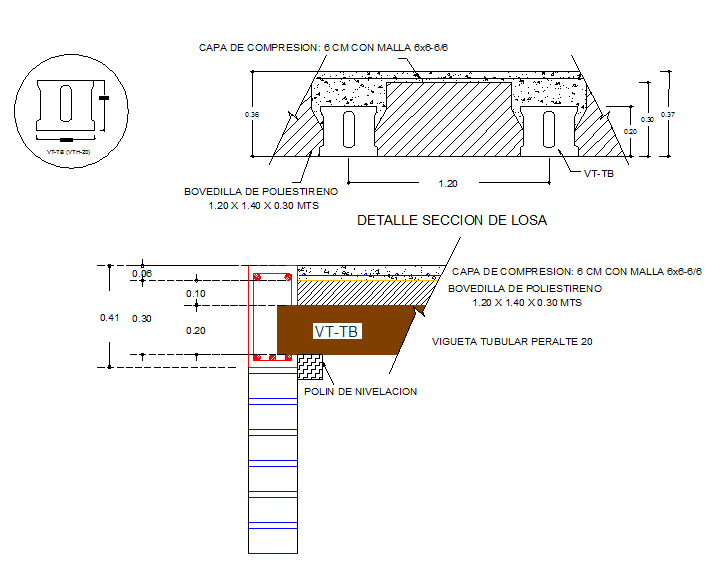

Explore this detailed Slab Design DWG featuring a 1.20 x 1.40 x 0.30 meters slab with VT-TB tubular joists and polystyrene bovedilla. The design includes a 6 cm compression layer reinforced with 6x6-6/6 steel mesh, providing optimal structural integrity for residential, commercial, and industrial projects. Every section is dimensioned accurately for practical implementation, highlighting the interaction between the VT-TB joist, polystyrene bovedilla, and leveling beam. Architects, civil engineers, and builders can use this drawing for precise planning, cost estimation, and construction detailing.

This Slab Design DWG file is compatible with AutoCAD, 3D Max, Revit, and SketchUp, making it ideal for professionals requiring detailed structural layouts. The drawing clearly illustrates slab thicknesses, reinforcement mesh, and spacing, ensuring accurate construction guidance. By subscribing to cadbull.com, users gain access to high-quality DWG files like this slab design, enabling faster project execution and superior design visualization. The file also helps interior designers and builders understand the technical composition of slab and counter slab setups for optimized structural performance.
