Detail of Stairs AutoCAD Drawing with Riser Tread Section and Rail

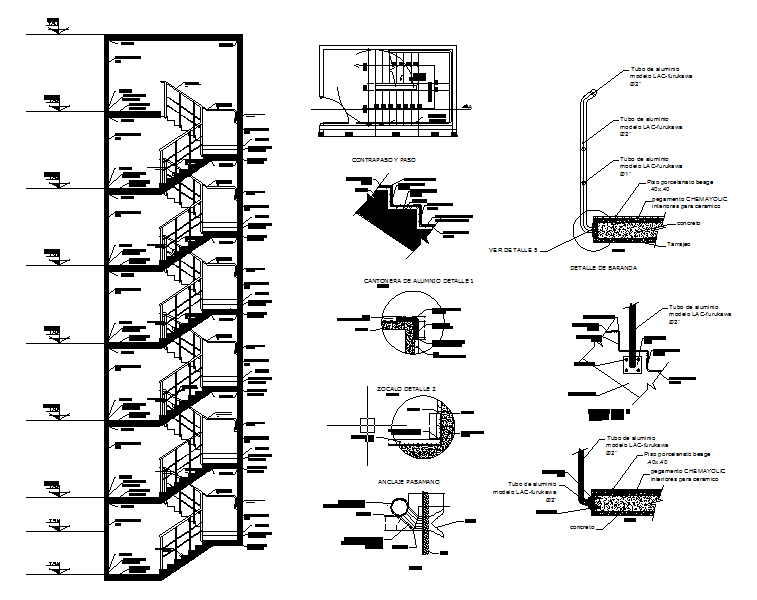

This Detail of Stairs AutoCAD drawing presents a complete vertical stair layout with clearly defined riser heights, tread depths, landing levels, and floor-to-floor connections. The drawing includes sectional stair views showing step geometry, waist slab thickness,s nosing detail,s and accurate measurements for each level. Handrail and balustrade positioning is illustrated with fixing points alignment and spacing suitable for residential or multi-storey building applications. The stair core is shown with repeated levels,s ensuring consistency in dimensions and structural coordination for practical site execution. All elements are drafted to scale, allowing precise interpretation for planning and construction use.

The drawing also covers detailed components such as stair edge profiles, railing posts, anchoring methods, and slab connections at each landing. Measurement annotations support safe circulation standards and smooth movement between floors. This Detail of the stairs AutoCAD drawing is useful for architects, civil engineers, and interior designers who require clear stair detailing for documentation and execution. The file helps in understanding spatial coordination,n structural clarity, and material placement while maintaining drawing accuracy and professional CAD standards for real projects.
