Foundation footing structure details along with other RCC units autocad file
Tags
#footing#RCC structure#dimension#reinforcement#effective cover#concrete masonry#autocad drawing#2d view#downloads#free#building#autodesk#files#cad drawing#urban house
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

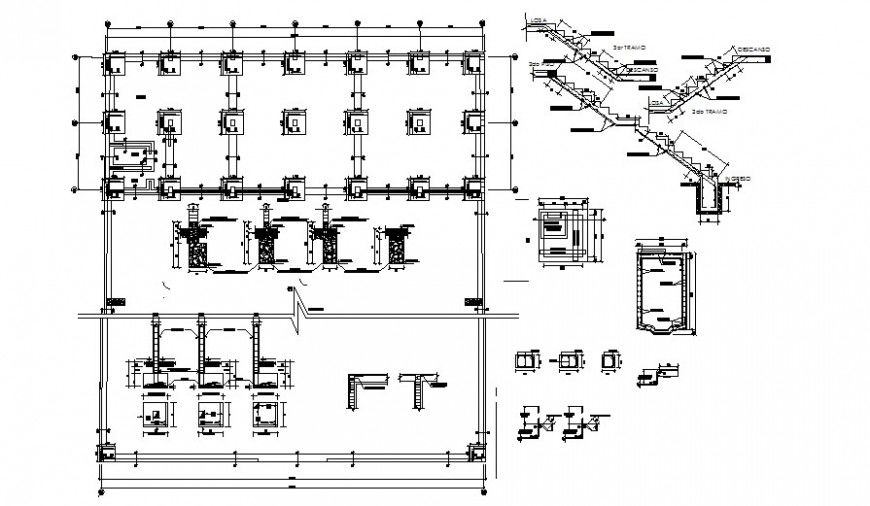

Foundation footing structure details along with other RCC units autocad file that shows foundation plan details along with staircas details and footing details with reinforcement details in tension and compression zone along with hook up and bent up main and distribution bars details are shown in drawng.
Uploaded by:
Eiz Luna
