Beach House Design Drawing with Floor Plans Sections and Elevations

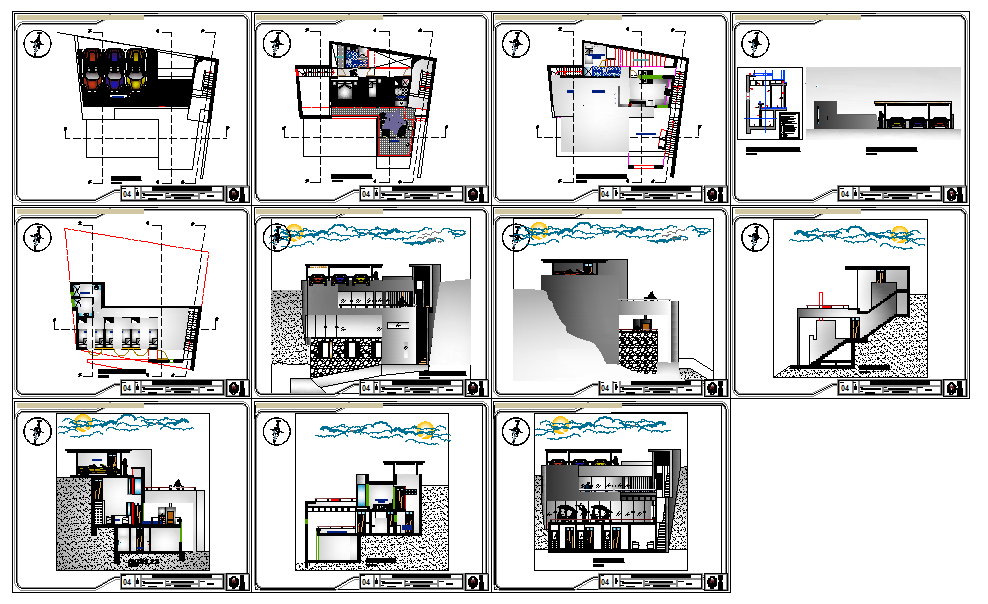

is Beach House Design Drawing AutoCAD file presents a complete architectural set prepared for a coastal residential structure. The drawing includes detailed floor plans showing functional zoning of living areas, bedrooms, kitchen, toilets, circulation spaces, and service areas arranged according to site geometry. The plans clearly indicate wall layouts, room dimensions, door and window positions, and internal movement flow. Due to the beachside context, the design reflects compact planning with open terraces and level changes adapted to sloping terrain. All drawings are properly scaled with dimension lines and reference markers suitable for professional drafting and construction use.

The drawing set also features multiple sectional views and elevation drawings that explain vertical height relationships, floor levels, structural stepping, and roof configuration. Section drawings illustrate foundation depth, retaining wall treatment, staircases, and cut levels responding to site contours. Elevations define the external massing, façade proportions, and opening placements. The AutoCAD beach house drawing includes clear annotations, consistent line work, and organized sheet presentation for easy understanding. This file supports architectural design development, coastal house planning, and construction documentation for beachside residential projects.
