2D Residential Floor Plan and Section Drawing with 8.11m Plot Size

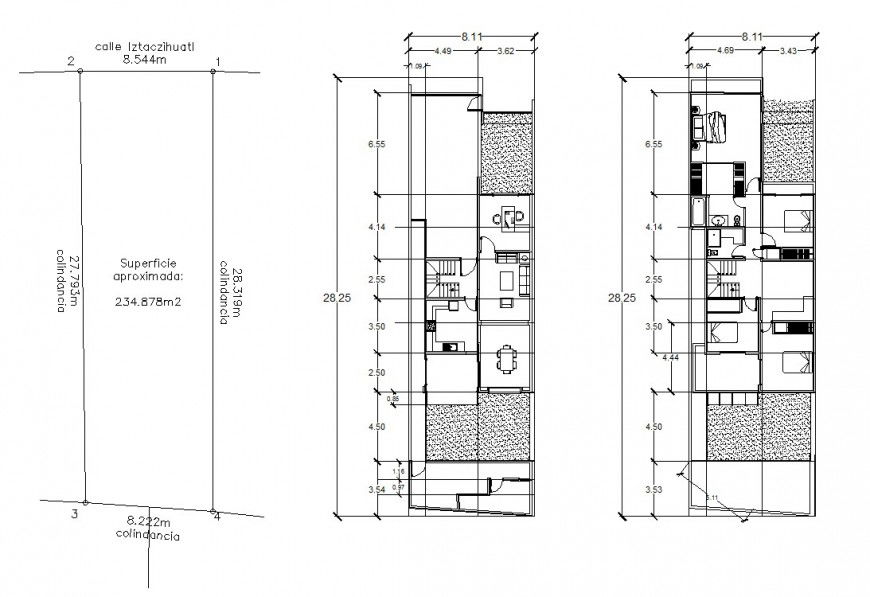

This AutoCAD DWG drawing shows a detailed 2D house floor plan and section layout designed on an approximately 8.11m wide and 28.25m long residential plot. The drawing includes complete site boundary measurements, total plot area of about 234.87 square meters, and road frontage details. It presents ground floor and typical floor planning with clearly marked room sizes, circulation paths, and internal zoning. Staircase placement, living area, kitchen, bedrooms, and sanitary spaces are accurately arranged with standard architectural proportions. All horizontal and vertical dimensions are provided in meters for technical clarity and construction reference.

The house section and elevation layout also illustrate floor level heights, slab thickness, plinth levels, and ceiling alignment. Door and window blocks are properly positioned with structural wall thickness and opening measurements. Vertical sections highlight staircase rise, landing width, and floor-to-floor height details for safe movement planning. This 2d house floor plan AutoCAD drawing supports project documentation, site execution, and 3D modeling preparation.
