Masonry 0.15 m common brick support with parfait section in auto cad

Description

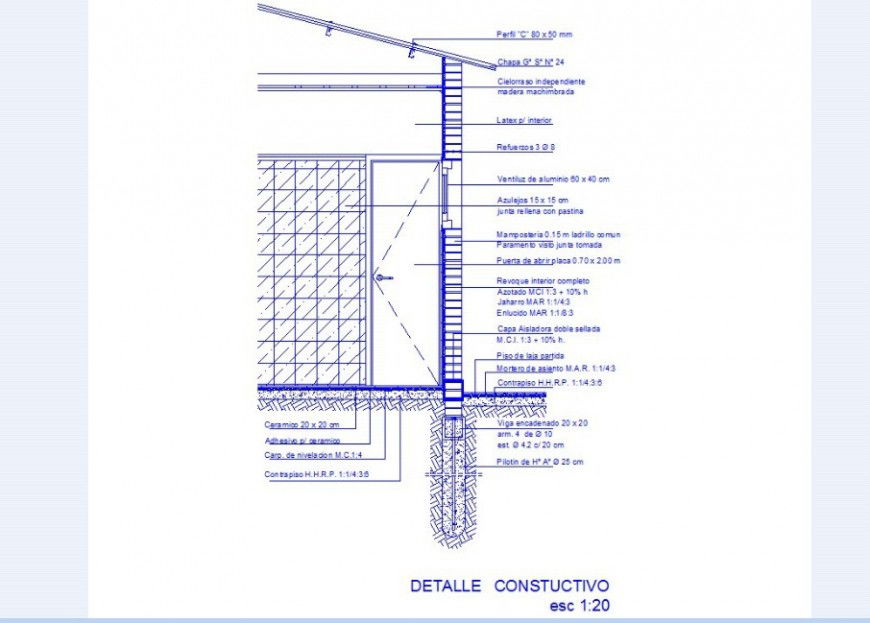

Masonry 0.15 m common brick support with parfait section in auto cad sectional elevation include detail of area with floor and floor level Chained beam 20 x 20 in ground level inner area and column and wall with necessary dimension.

File Type: DWG File ID: 95794
