Roofing Shade Structure Construction Details 2D AutoCAD Drawing

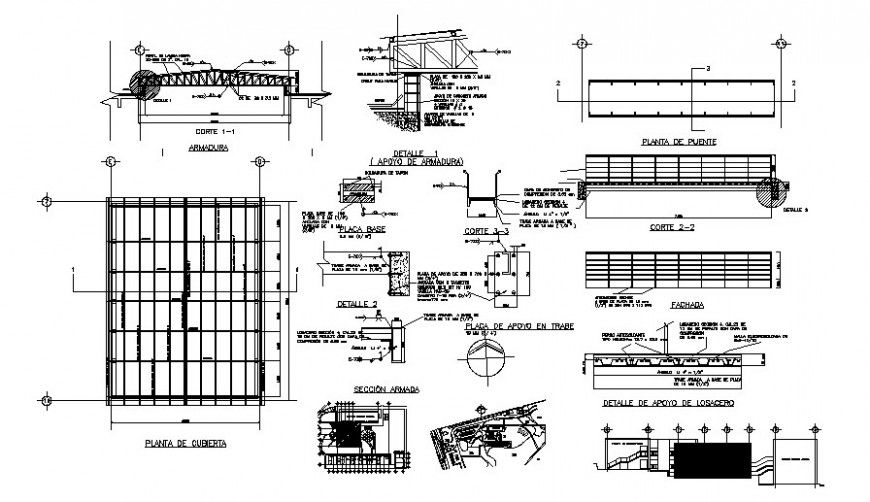

This Roofing Shade Structure Construction Details 2D AutoCAD drawing provides clear technical information for designing and constructing shade roofing systems. The drawing includes a detailed roofing structure plan showing the layout of construction units with precise dimensions. Struts positioning, spacing, and alignment are clearly defined to support structural stability. Roofing material details are indicated to explain layer arrangement and fixing method. Truss components are labeled with standard naming texts, and connection points are marked to help users understand the overall roofing framework. All measurements are shown accurately for professional drafting and execution purposes.

The 2D construction views further illustrate truss depth, strut length, and roof slope alignment to support correct installation. Roofing structure parts such as rafters, purlins, and support members are identified for easy reference. Dimension annotations and structural detailing make this AutoCAD DWG file suitable for architects, civil engineers, builders, and designers preparing construction drawings and working details. The file integrates smoothly with AutoCAD, Revit, SketchUp, and 3D Max workflows, offering reliable roofing shade structure detailing for residential, commercial, and utility construction projects.
