High Rise Building Architectural Plans Section Elevation CAD

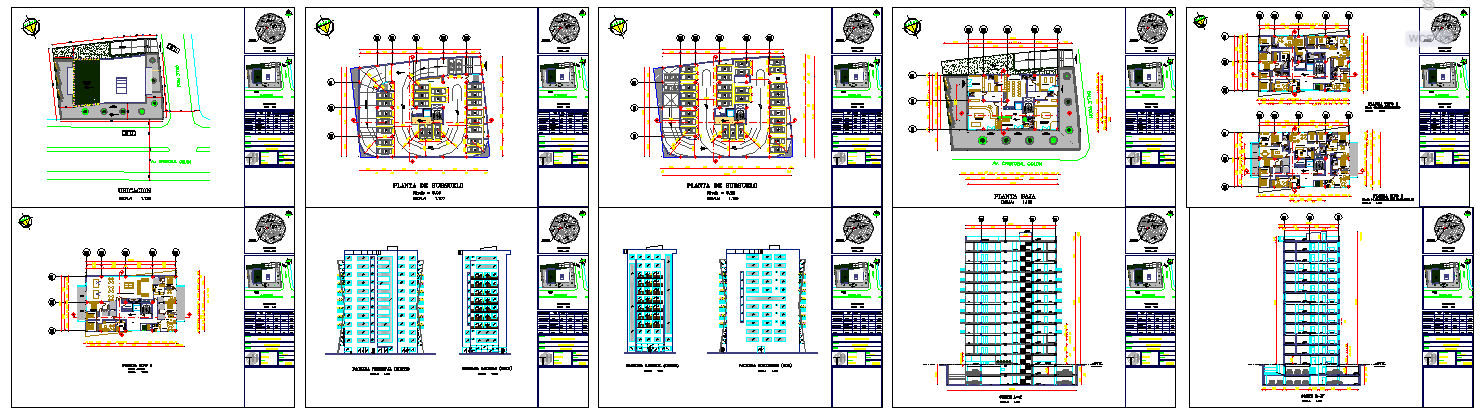

This drawing presents a high-rise building architectural plan section elevation CAD file in DWG format with complete multi-storey building detailing. The high-rise building CAD drawing includes site plan, basement parking layout, ground floor plan, typical floor plans, vertical sections, and front elevation views. The building is designed with an approximate overall height of 45000 mm, standard floor-to-floor height of 3000 mm, and slab thickness of 150 mm. The layout shows structural grid alignment, staircase core, lift shaft, balcony projections, and facade detailing with clearly marked dimensions for construction reference. Basement parking bays are arranged with standard 2500 mm by 5000 mm parking size and internal circulation paths for efficient vehicle movement. The high-rise building design CAD drawing for AutoCAD provides accurate architectural planning data for residential and mixed-use tower projects. Elevation views display window alignment, facade treatment, podium level, and entrance lobby detailing with proportioned measurements. Section drawings indicate foundation depth, beam levels, column spacing of approximately 6000 mm, and vertical service shafts. This DWG file supports professional drafting, structural coordination, and presentation documentation.
