Wall and Floor Construction Detail View with Plaster Support AutoCAD

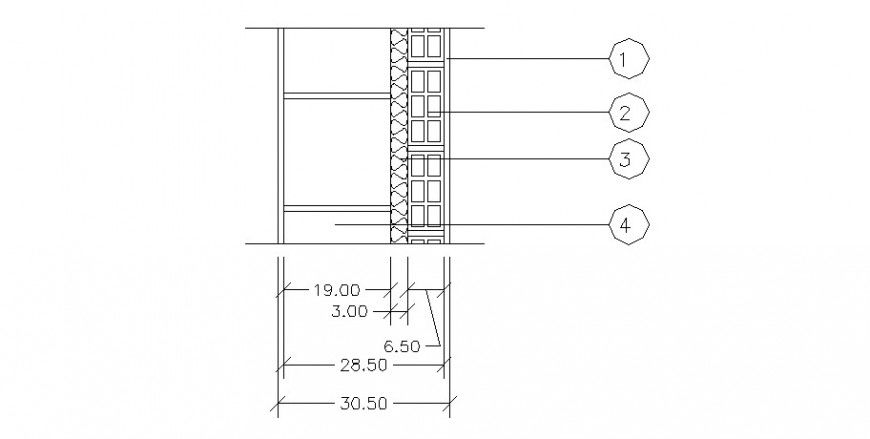

This Wall and Floor Construction Detail View AutoCAD drawing clearly illustrates the structural relationship between wall elements and floor area construction. The drawing includes a detailed sectional view showing a standard 230 mm thick masonry wall supported over a layered floor system. The floor construction is represented with base concrete, floor finish, and support layers, along with proper junction detailing between wall and slab. Plaster thickness is indicated on both internal and external wall faces, ensuring clarity for finishing and material application. Dimensions, level markings, and construction lines are accurately drafted to support professional execution on site.

The AutoCAD file further explains floor support conditions with clear hatch patterns, material identification, and alignment of wall footing with the finished floor level. Construction annotations help users understand plaster application, floor thickness variation, and load transfer from wall to slab. This drawing is useful for understanding residential and commercial construction detailing, making it suitable for architects, civil engineers, interior designers, and builders. The precise drafting quality allows easy modification in AutoCAD, 3D Max, Revit, and SketchUp workflows, making it a valuable reference for construction documentation and technical detailing.
