Reinforced Concrete Bridge Design AutoCAD Drawing with Sections

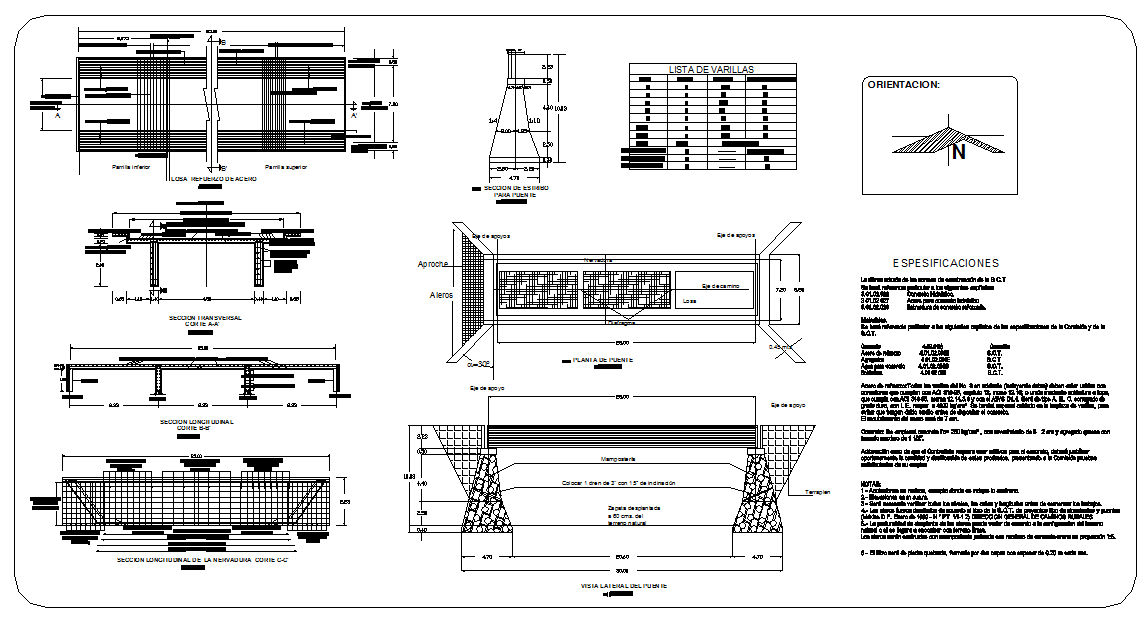

This Reinforced Concrete Bridge Design AutoCAD Drawing provides a complete structural layout, including deck slab reinforcement plan, longitudinal section, cross section, beam arrangement, and abutment details. The drawing clearly showsthe bar bending schedule, slab thickness, beam depth, pier dimensions, and foundation measurements. It includes side elevation, support layout, and detailed sectional views with accurate span length, deck width, and bearing placement. Reinforcement distribution and structural alignment are properly indicated to ensure clarity in load transfer and construction execution. This drawing is suitable for small to medium span reinforced concrete bridge projects.

The bridge design drawing helps improve project coordination, structural planning, and documentation accuracy. It supports tender documentation, working drawings, and academic reference. This file enhances productivity and ensures proper understanding of reinforcement detailing and bridge structural system design for practical construction projects.
