3D Bridge Detail DWG with Deck Pier Elevation and Dimension Data

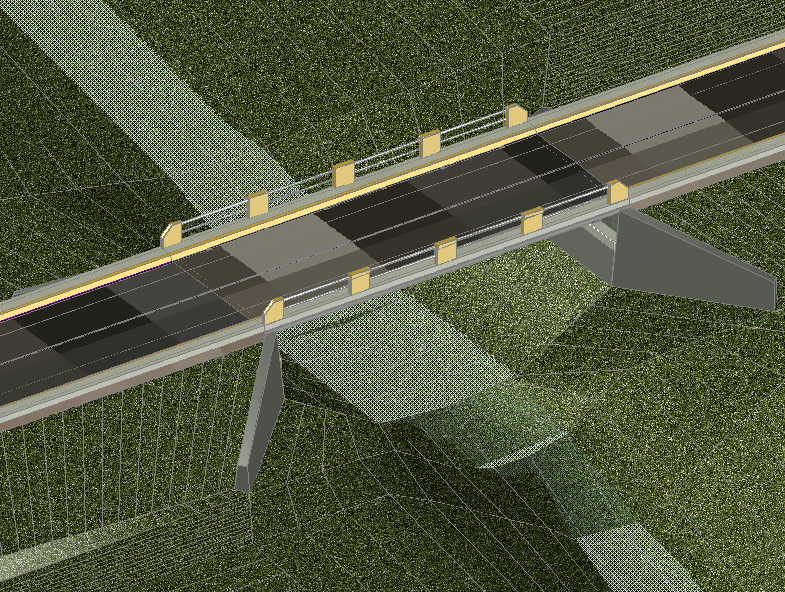

This 3D Bridge Detail DWG file presents a realistic three-dimensional bridge model with accurate structural and geometric detailing for infrastructure projects. The drawing includes 3D bridge detail DWG views showing deck slab layout, carriageway alignment, side guardrails, pier supports, and abutment foundations. It illustrates roadway width, deck thickness, span length, pier height, and support spacing with clearly defined millimeter dimensions. The model also represents parapet blocks, safety railing alignment, and structural deck continuity across multiple spans. This file is suitable for visual presentation, structural coordination, and conceptual validation in bridge construction planning.

It supports visualization of load transfer between deck and piers while maintaining precise dimension references. With clear modeling standards and structured detailing, this 3D bridge plan improves design communication and project accuracy.
