Metal Gate Design DWG File Detailed Metal Gate Layout and Structure

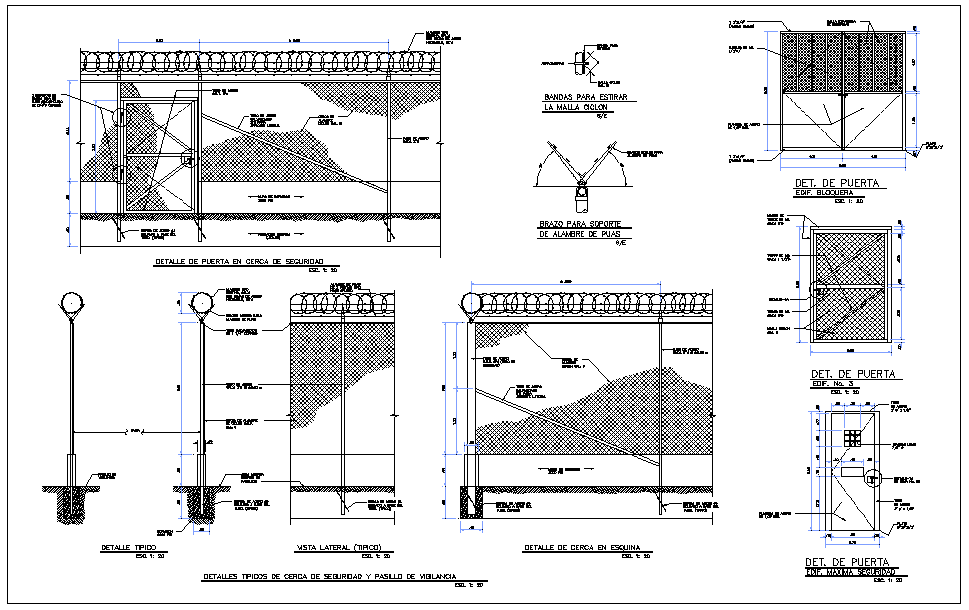

This AutoCAD DWG file features an in-depth design of a metal gate system, complete with detailed components and structural views. The file includes several views, including the detailed gate construction, gate posts, and locking mechanisms, ensuring precise implementation for your security fencing needs. Designed for architects and civil engineers, this file allows for modifications based on specific project requirements.

The drawing provides dimensions, material specifications, and assembly details for both the metal gate and its supporting structures. The included views show clear and accurate measurements, ideal for professionals working on high-security perimeter installations. The design is optimized for creating durable and long-lasting gates and fences, with security features integrated into the system for efficient implementation.
