Factory Machinery DWG Design with Detailed Dimensions and Section

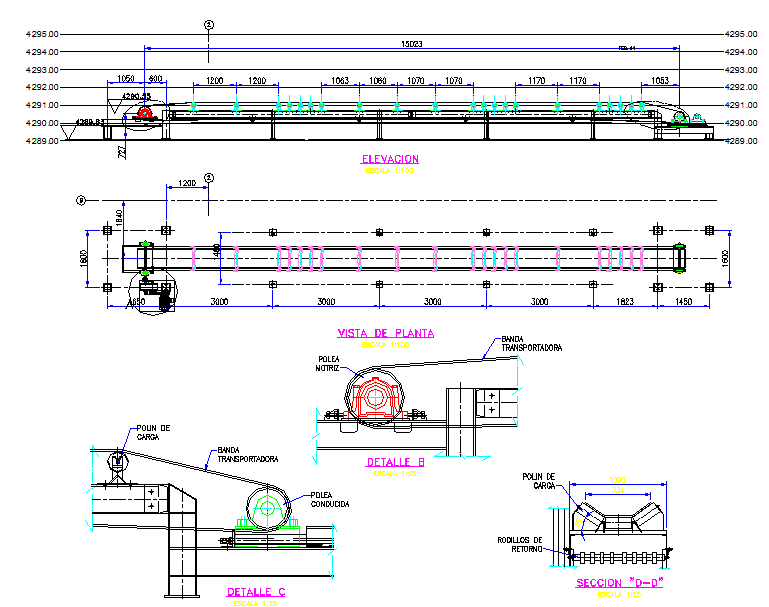

This Factory Machinery DWG file provides precise details of machinery design, showcasing all necessary section views, elevation, and plant views. It includes measurements such as the conveyor belt width of 3000 mm, machinery height of 4290 mm, and various sections and details with precise scaling. It also includes detailed information about key components, such as the roller system and load point mechanisms. This comprehensive design is ideal for engineers, architects, and designers looking for accurate factory machinery CAD designs for planning and construction. The file helps visualize the full design layout, enabling detailed analysis and integration with existing factory systems.
