Steel Gate DWG Design with Precise Dimensions and Section Views

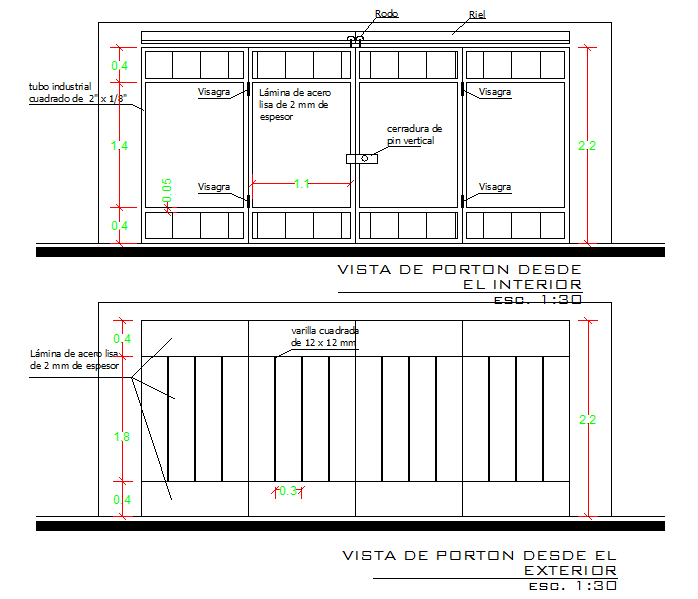

This Steel Gate DWG file provides a detailed design of an industrial steel gate, showcasing both interior and exterior views with precise measurements. The gate is made of high-quality steel with a thickness of 2 mm, including steel plates and square bars measuring 12 x 12 mm. The file includes key dimensions such as the height of 2.2 meters, width of 10.37 meters, and thickness of the steel components. It also features clear annotations for components like hinges, lock pins, and sliding rails. This comprehensive design allows architects, engineers, and construction professionals to visualize the full steel gate layout, ensuring proper installation and integration in various building projects.
