 ROTARIAN RESORT,  SHARM EL SHEIKH, Egypt
UPGRADING & WORKING DESIGNING
MAIN BUILDING ELECTRIC WORKING FOR BASEMENT FLOOR PLAN
(LIGHTING)

ELECTRIC WORKING FOR BASMENT FLOOR PLAN

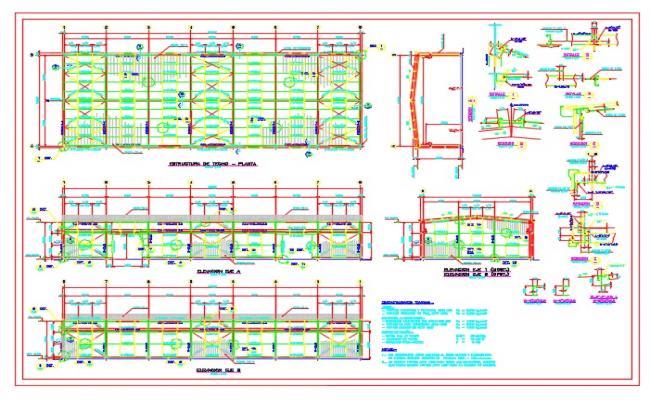

MALVINAS CAMISEA steel hanger full details with cladding accessory detailed typed in french (roof & sections)

MALVINAS CAMISEA

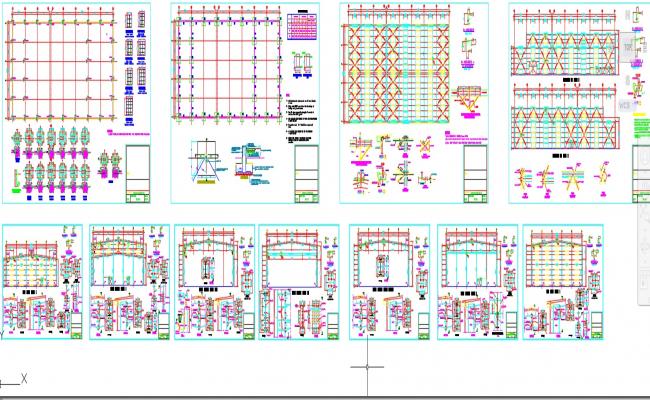

<p>This steel hanger 30m X 50m design drawing offers a complete industrial shed layout built entirely with hot-rolled steel sections. The file includes a </p><p>Foundation plan that forms the <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">structural</a> base for the entire hangar. Column head details are provided to show how the vertical steel members connect and transfer load at the top junction. Cross sections give a clear view of the internal framing and structural depth across the 30-meter by 50-meter span. The end gable design shows the closing wall structure at both ends of the hangar, completing the building envelope. Connection details are drawn out precisely, covering bolted and welded joints between beams, columns, and trusses. Bracing layouts are included to demonstrate how lateral stability is achieved across the steel frame. The roof plan outlines the sloped covering system designed to handle the large clear span efficiently. A tow-crane arrangement is also part of the drawing, showing how overhead lifting equipment integrates with the steel structure. This makes the file especially useful for industrial sheds, aircraft hangars, warehouses, and large clear-span buildings requiring crane movement. The drawing is provided in 3D Max format, giving designers a workable base for visualization and further detailing. Structural engineers and steel fabricators can use this file as a reference for hot rolled steel hangar <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction</a> with crane support.</p>

Steel Hanger Shed 30m X 50m Full Design Drawing with Tow Crane
