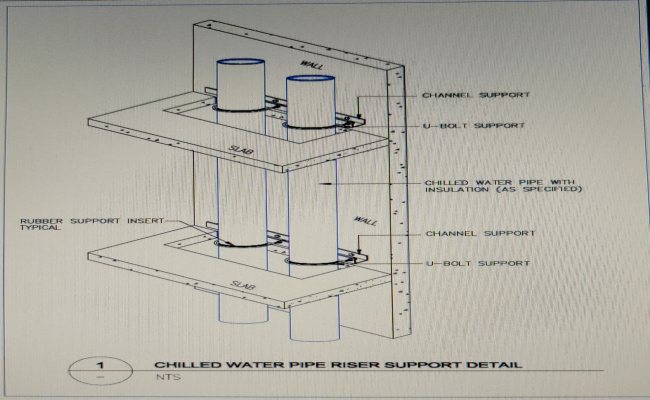

CHILLED WATER PIPING RUN THROUGH THE SLAB SUPPORTING IN THE WALL WITH U BOLT, CHANNEL SUPPORT, AND RUBBER INSERT.

CHILLED WATER PIPING RISER SUPPORT DETAIL

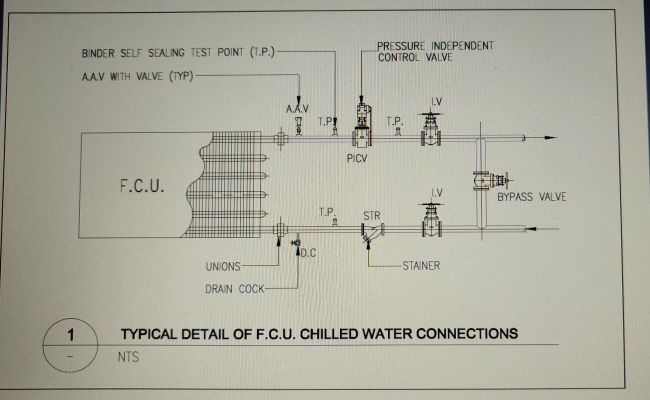

This AutoCAD DWG file provides a <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank">detailed </a>FCU chilled water piping connection drawing, including a pressure independent control valve PICV, isolation valves, bypass valve, strainer, drain cock, unions, and test points. The drawing shows precise piping layout, connection details, and component placement, making it ideal for HVAC engineers and MEP designers working on chilled water systems. Compatible with Revit, 3D Max, and Google SketchUp, it serves as a professional reference for HVAC design, system integration, and <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction </a>planning of FCU chilled water piping networks.

FCU Chilled Water Piping DWG AutoCAD Drawing with PICV and Valve

Explore subair valiyattil’s CAD drawings with 2 ready-to-use files on Cadbull.
