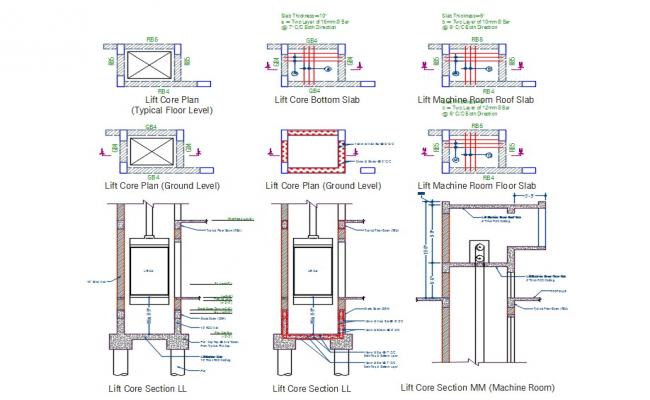

This AutoCAD drawing presents a <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank">detailed </a>lift core reinforcement layout designed for an 8-passenger lift system in an eight-floor residential building. The drawing clearly illustrates the lift core plan at the typical floor level, the lift core bottom slab reinforcement, and the lift machine room roof slab configuration. <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">Structural</a> elements such as RB4 and RB5 beam locations, GB4 beam placement, slab reinforcement bars, and column wall arrangements are accurately represented to support vertical lift shaft <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction</a>. The layout also highlights slab thickness variations, including 10-inch and 6-inch slabs, with reinforcement bar arrangements and spacing details required for safe structural performance of the lift core system.

Lift Core Reinforcement Layout AutoCAD Drawing 8 Passenger 8 Floor
