This Equipment Mounting Rail and Panel Nut AutoCAD DWG provides detailed fabrication drawings for an industrial mounting rail and rectangular panel fixing nut used in equipment installation and enclosure assembly. The drawing includes front, side, section, and isometric views with complete manufacturing dimensions and hole specifications. The mounting rail features an overall 300 mm length, 22.5 mm profile height, 18 mm width, 6.3 mm flange height, 9.2 mm internal opening, 2 mm material thickness, and 12 × 30 mm slotted holes at 60 mm spacing. The panel fixing nut includes 50 × 42 mm dimensions, 29 mm overall width, 19 mm inner width, 12.7 mm height, 6 mm slot depth, and an M10 × 1.5 threaded hole. This AutoCAD DWG file is suitable for industrial fabrication, equipment support systems, electrical panel manufacturing, structural detailing, workshop documentation, and mechanical assembly projects.

Equipment Mounting Rail and Panel Nut AutoCAD DWG Fabrication Detail

This AutoCAD DWG file provides a complete structural reinforcement DWG with footing, column beam, and slab layouts, offering a highly detailed technical package suited for accurate <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;">construction</a> and engineering coordination. The drawing set includes isolated and combined footing layouts with reinforcement cages, bar diameters, hook lengths, and concrete cover notes. Column reinforcement sheets clearly show vertical bar placement, tie spacing, lap positions, and dimensional references for multiple column sizes. Beam layout drawings feature longitudinal bars, crank bar locations, stirrup patterns, and sectional views that support precise fabrication. The slab reinforcement layouts include bar spacing, mesh distribution, drop panel detailing, and slab thickness indicators essential for proper execution on-site.Additional drawings provide stair reinforcement details, lintel beam reinforcement, tie beam arrangement, septic tank and water tank reinforcement sections, as well as raft foundation reinforcement, clearly marked with distribution and main bars. A complete bar-bending schedule and column schedule help professionals plan fabrication, cutting, and material estimation efficiently. The inclusion of a 3D structural perspective enhances understanding of the overall structural composition. This DWG file is valuable for<a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;"> architects</a>, civil engineers, builders, and drafting professionals who require dependable, well-organized <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;">structural </a>drawings, making it an excellent reason for users to subscribe for continued access to high-quality CAD resources.

Structural Reinforcement DWG with Footing Column Beam and Slab Layouts

This AutoCAD DWG file provides a full two-storey residential building plan, offering detailed architectural drawings essential for design, analysis, and <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;">construction</a> execution. The layout includes complete ground and second-floor plans, sectional drawings, roof framing layout, slab plan, column grid arrangement, and floor tile layout. The included elevations clearly display façade proportions, window placements, sill heights, and structural alignment across both levels. The file also features a comprehensive <a href="https://cadbull.com/Autocad-Door-Window-Blocks-&amp;-DWG-Models" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;">window and door</a> schedule, sliding window details, fixed glass panel details, and material specifications that support precise quantity estimation and drafting accuracy. A rendered perspective view further enhances project visualization, enabling architects and designers to present concepts professionally.The DWG package includes a site development plan, septic tank plan, and structural detailing such as truss arrangement, beam layout, and plumbing routing references. These measured drawings help streamline workflows for architects, civil engineers, interior designers, builders, Revit users, SketchUp modelers, and 3D visualization experts. By accessing this file through a subscription, users gain high-quality, ready-to-use CAD resources that save drafting time, improve accuracy, and support <a href="https://cadbull.com/Projects" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;">project </a>documentation at a professional level. This drawing is a valuable addition for anyone working on residential design development or construction-ready planning.

Two Storey Residential CAD Plan with Floor Layouts and Elevation Set

This AutoCAD DWG file provides a complete multi floor residential building plan featuring detailed <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;">architectural </a>layouts for every level, including the ground floor, typical floors, terrace floor, and service floors as shown in the uploaded drawings Each sheet includes accurately measured room arrangements, <a href="https://cadbull.com/Master-bedroom" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;">bedroom </a>and living zones, kitchen and utility areas, and circulation paths with stair and lift placements clearly marked. The drawings also highlight structural column grids, beam references, sanitary positions, and entry–exit points, allowing architects and engineers to understand the building configuration with precision. The file further includes furniture layouts, door and window schedules, and electrical provisions, making it a valuable resource for design development and construction planning.Additionally, the DWG set contains terrace slab layouts, machine room spaces, mechanical service plans, and architectural detailing essential for high-rise residential projects. The inclusion of multiple floor variations, service ducts, balcony connections, and vertical shaft placements ensures full clarity for design coordination and BIM-ready modelling. This subscription-exclusive file is ideal for architects, civil engineers,<a href="https://cadbull.com/Interior-design" rel="noopener noreferrer" target="_blank" style="color: rgb(17, 85, 204); background-color: transparent;"> interior designers</a>, and builders looking for a ready-to-use, highly detailed residential building plan that supports fast project execution and accurate CAD documentation.

Multi-Floor Residential Building AutoCAD Plan with Full Layouts

This detailed AutoCAD layout includes complete plans for the ground, first, second, third, and paint house floors, showing clear room and hall measurements across each level. The ground floor features Shop No 1 (8 ft 3 in x 21 ft) and Shop No 2 (8 ft 6 in x 21 ft), along with halls sized 8 ft 3 in x 25 ft and 8 ft 6 in x 25 ft, with staircases measuring 9 ft 6 in x 17 ft. Upper floors provide rooms sized 11 ft 6 in x 13 ft, 11 ft 6 in x 15 ft 6 in, and 10 ft 6 in x 15 ft 6 in, supported by 4 ft-wide passages and bathrooms of 4 ft x 7 ft and 7 ft x 5 ft.Balconies are shown at 11 ft x 5 ft 6 in and 4 ft wide, with open courts measuring 16 ft 6 in x 18 ft 6 in. The paint house level includes an O.H.W. tank (9 ft 6 in x 17 ft). Section A-A displays an RCC slab 6 inches thick, beams 6 in x 18 in, and plinth beams 9 in x 24 in, while the site plan marks a 27 ft x 50 ft plot bordering the main road.

Building AutoCAD File with Shops Halls Rooms Kitchen and Balcony

This AutoCAD DWG masjid layout provides a complete ground floor plan with a 60 ft x 26 ft prayer hall, designed with arches and a continuous 60 ft x 10 ft 6 in veranda. The drawing includes a clearly detailed Mehrab sized 9 ft x 6 ft 6 in, an Aazan room of 5 ft x 4 ft, and a store measuring 5 ft x 4 ft, supporting essential mosque functions. The plan also shows W.C units of 4 ft x 3 ft 6 in, urinals positioned on both sides, and <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 0, 0);">structured </a>open spaces including a 10 ft wide open strip and a 3 ft 6 in open passage, offering improved ventilation. A large courtyard sized 57 ft 6 in x 15 ft is placed centrally to enhance circulation and natural lighting throughout the masjid.The DWG file further includes an ablution space measuring 25 ft x 10 ft, supporting multiple users at once. Additional facilities such as a 12 ft x 14 ft room, a lavatory sized 14 ft 9 in x 14 ft, and multiple baths ranging between 6 ft 9 in x 3 ft 6 in and 7 ft 9 in x 3 ft 6 in ensure full functional detailing. Minarat bases, 4 ft 6 in projections, staircases of 8 ft x 17 ft, and multiple open-to-sky areas are also accurately marked. This DWG plan is ideal for <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank" style="background-color: transparent; color: rgb(0, 0, 0);">architects</a>, interior designers, civil engineers, builders, and CAD professionals needing a detailed mosque layout for religious architectural design and project planning.

Masjid AutoCAD DWG Floor Plan with Prayer Hall and Ablution Area

This AutoCAD DWG duplex house plan showcases a detailed 2,950 sq.ft layout, designed for architects, civil engineers, interior designers, and builders who value luxury and practicality in residential projects. The design offers a perfect balance of comfort, privacy, and aesthetic appeal with clearly defined spaces for every function.The ground floor includes a formal living room (454×513 cm), dining area (390×342 cm), kitchen (342×390 cm), and guest bedroom (450×520 cm) with an attached toilet (206×240 cm). The porch (440×675 cm), sit-out area, and pooja space add to the comfort and functionality of the home.The first floor features a master bedroom (450×550 cm), two additional bedrooms (450×467 cm and 390×450 cm), each with attached toilets (206×240 cm), and a family living room (390×334 cm). A study room (456×334 cm), balcony, and open terrace complete the upper floor, promoting natural light, ventilation, and a seamless indoor-outdoor connection.This home design is ideal for modern duplex residences, offering spacious interiors, stylish detailing, and functional planning — ready to be explored and customized using AutoCAD DWG for construction and visualisation.

Luxury 2950 Sqft Duplex Home Design With Study Room and Balcony

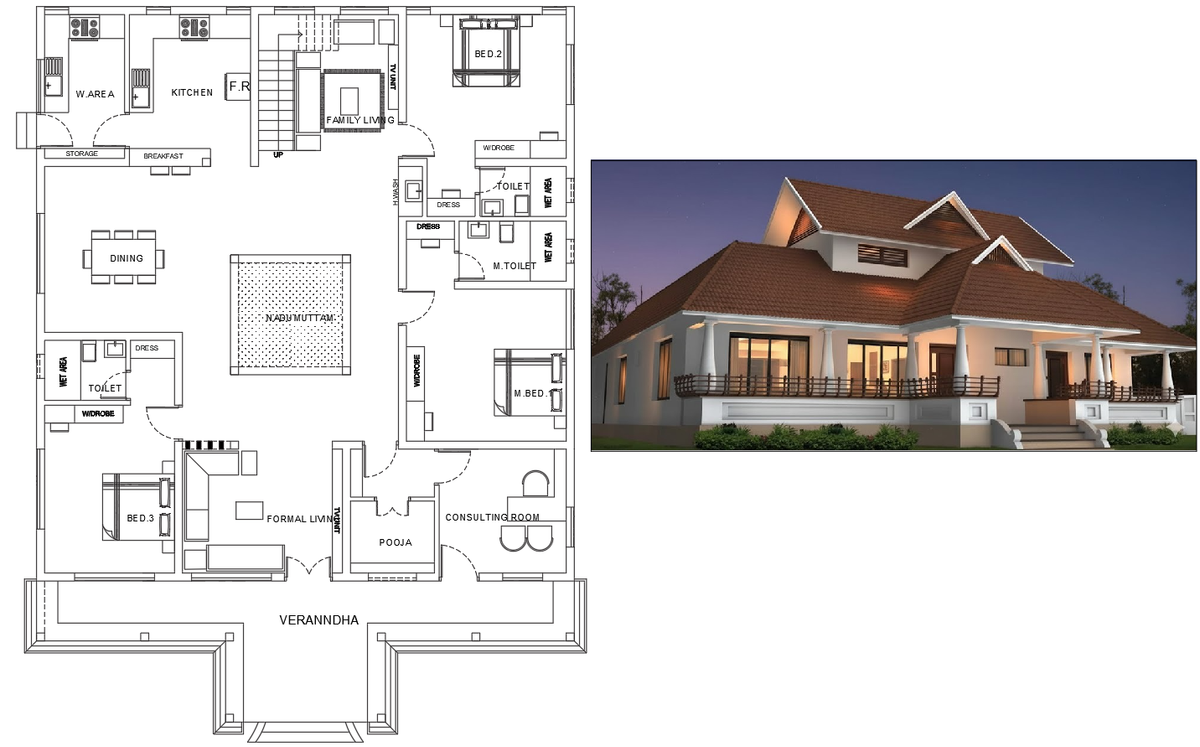

Download a traditional sloping roof house AutoCAD DWG plan featuring verandah, courtyard, and elegant elevation perfect for architects and home designers.

Traditional Sloping Roof House AutoCAD DWG Plan with Verandah

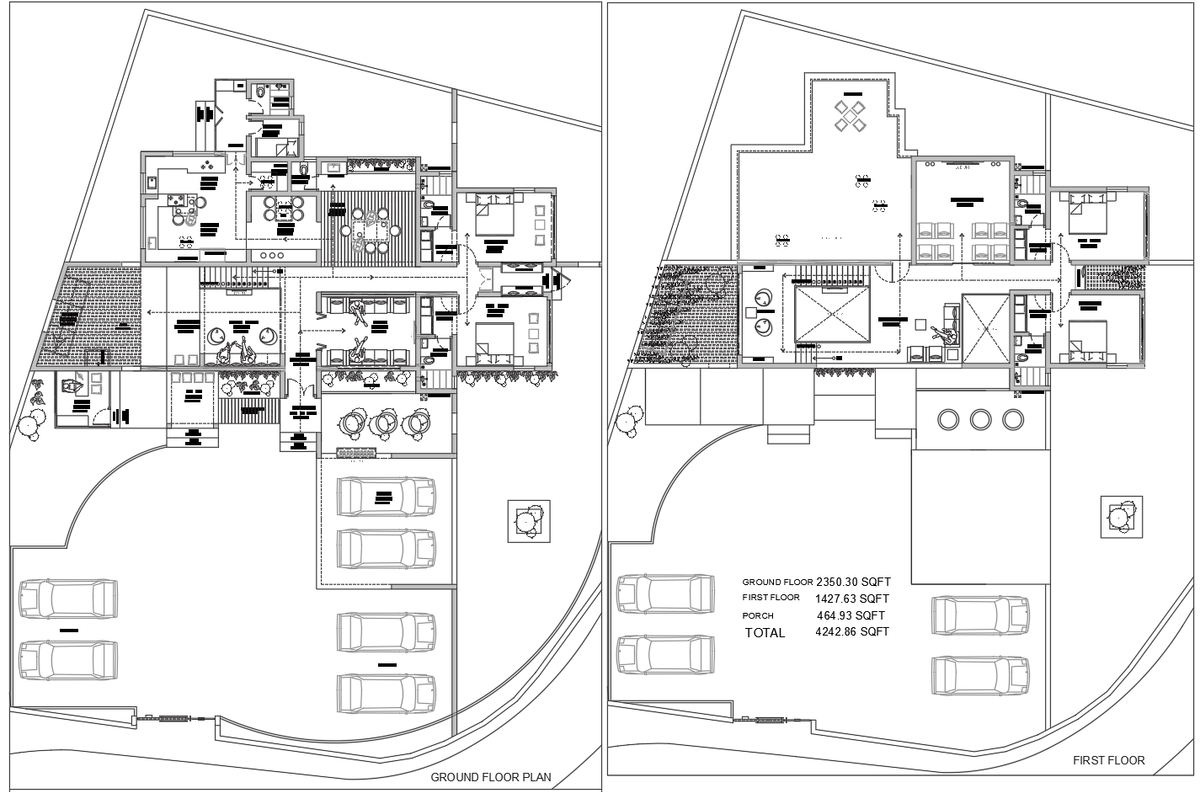

This large luxury house plan drawing is prepared in AutoCAD format and presents detailed ground floor and first floor layouts with precise area calculations. The ground floor plan covers approximately 2350.30 square feet and includes well-planned living areas, dining space, <a href="https://cadbull.com/Master-bedroom" rel="noopener noreferrer" target="_blank">bedrooms,</a> service zones, and smooth internal circulation. Furniture layout, room zoning, and access paths are clearly marked for professional residential planning. The layout also integrates landscaped open areas and internal courts that support ventilation and daylight. Multi-car parking is provided with clear driveway movement and porch planning for daily use.The first floor plan spans around 1427.63 square feet and is designed to complement the ground floor with additional living spaces, bedrooms, and open to below areas. A porch area measuring approximately 464.93 square feet is included, bringing the total built-up area to about 4242.86 square feet. Staircase positioning, internal connections, and open spaces are accurately detailed for construction clarity. This luxury house plan drawing is suitable for <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architects</a>, civil engineers, interior designers, and builders who require a high-quality residential CAD drawing with exact square footage, ground and first floor planning, parking layout, and comprehensive spatial detailing for execution and approval drawings.

Large Luxury House Plan Drawing 4242 SQFT Ground and First Floor

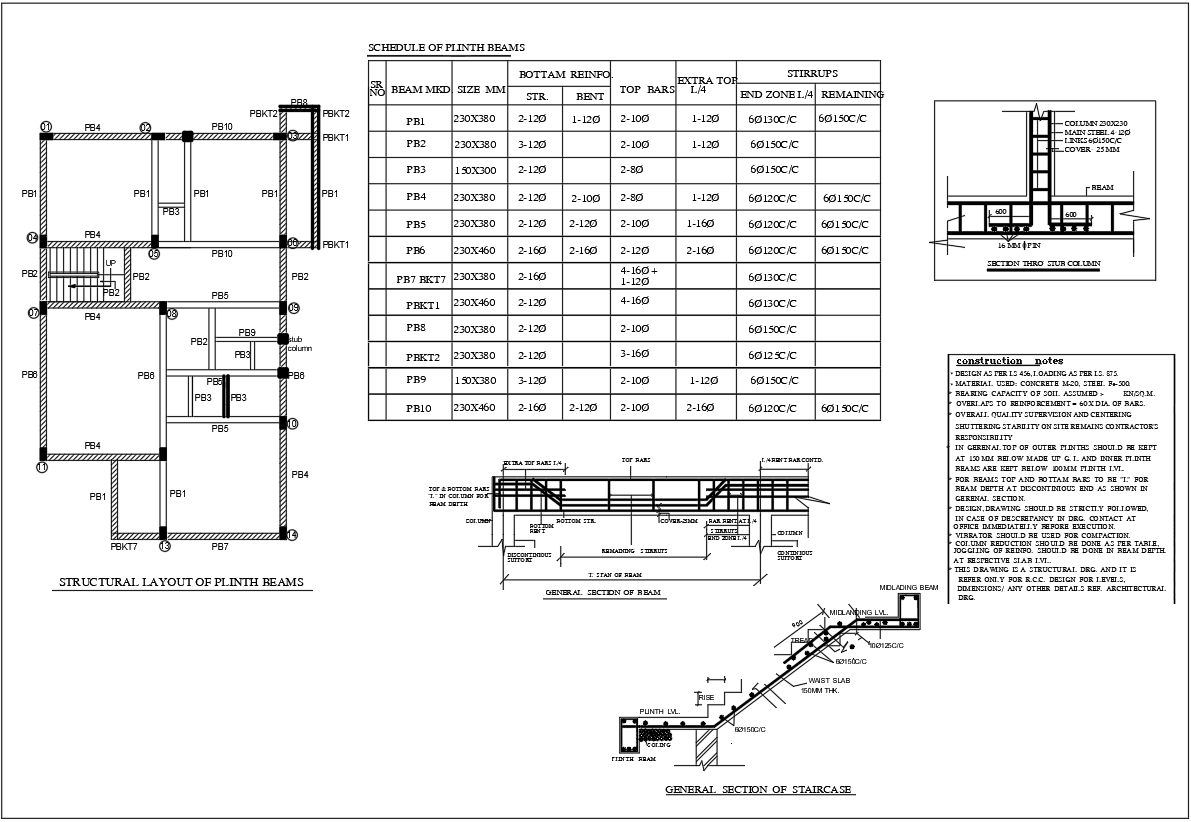

This detailed AutoCAD plan for RCC plinth beams shows a complete <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">structural</a> layout, reinforcement details, beam schedules, and staircase sections. The plan includes measurements for all beams, such as PB1 to PB10, bottom and top reinforcement bars, stirrup placement, and extra reinforcement for corner zones. Each plinth beam size is provided, along with spacing for longitudinal and cross bars, ensuring accurate <a href="construction" rel="noopener noreferrer" target="_blank">construction</a> and structural stability. The staircase section includes precise waist slab dimensions, riser and tread details, and reinforcement placement for safe and durable design.This AutoCAD-DWG file is ideal for<a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank"> architects</a>, civil engineers, and builders planning residential building foundations. The reinforcement details are clearly marked for proper execution, and the beam schedule allows professionals to calculate materials efficiently. The drawing also highlights structural notes for site implementation, including guidelines for cover, bar anchorage, and continuity of beams. Subscribing to Cadbull.com provides access to this and other high-quality AutoCAD structural plans, helping designers and construction professionals plan, visualize, and execute RCC structural layouts with precision, ensuring long-lasting foundation integrity.

AutoCAD RCC Plinth Beam Layout with Reinforcement and Staircase Detail

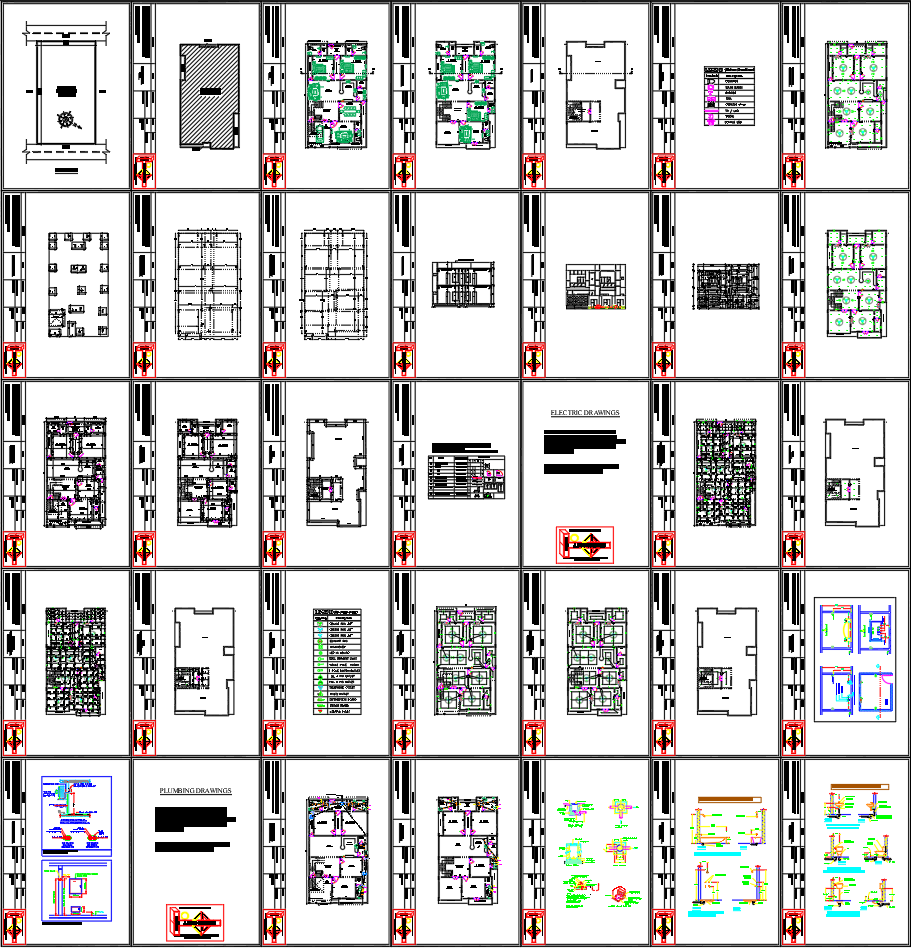

AutoCAD 2D residential house plan showing foundation, column, electrical, and plumbing layout with complete working drawings for architectural construction.

2D AutoCAD Residential House Plan with Foundation-Electrical Layout

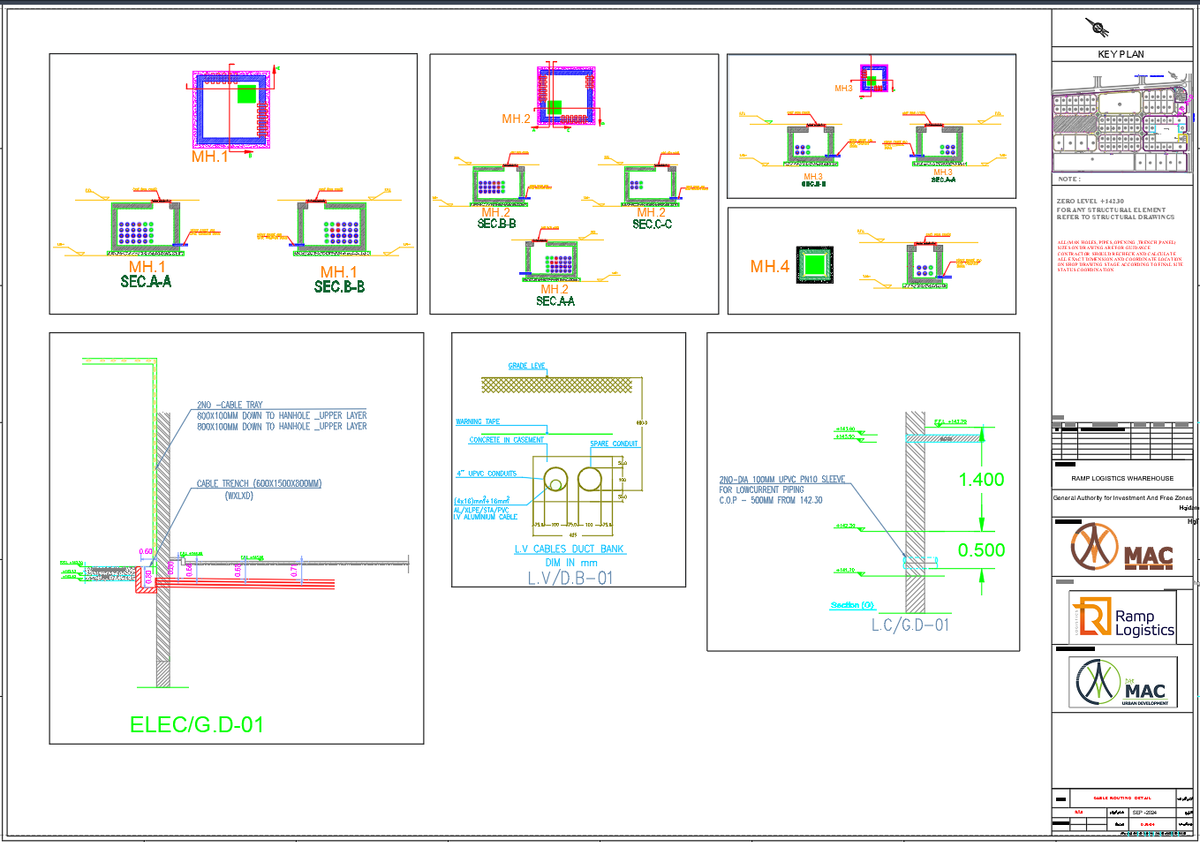

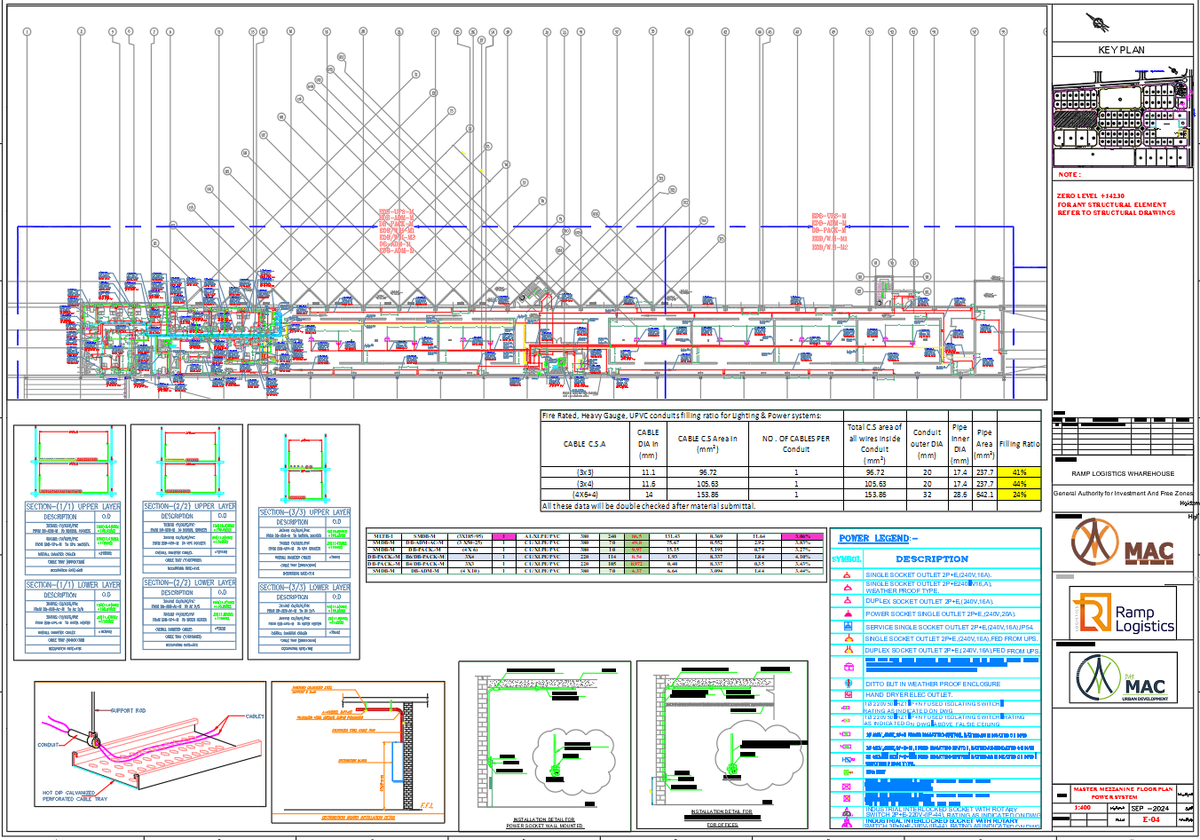

This AutoCAD DWG drawing provides a detailed electrical cable routing plan prepared specifically for a warehouse <a href="https://cadbull.com/Projects" rel="noopener noreferrer" target="_blank">project</a>. The layout clearly illustrates underground and surface-level electrical infrastructure, including LV duct banks, cable trenches, and manhole arrangements. Manhole details MH 1 to MH 4 are shown with plan views and sectional details, indicating concrete encasement, cover slabs, reinforcement placement, and cable entry points. Cable trench dimensions of 600x1500x800 mm are marked, along with cable trays and routing alignment to ensure safe and systematic electrical distribution across the site.The drawing also includes LV duct bank details with UPVC conduits, showing conduit spacing, diameter, spare conduits, and depth from finished ground level. Sectional views specify measurements such as 1.40 m and 0.50 m depths for conduit placement and protection layers. Additional details cover rainwater harvesting coordination, compound wall interface, and electrical ground detail references. Clear annotations, level markings, and <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction </a>notes make this drawing suitable for execution and coordination. This AutoCAD electrical routing plan is ideal for architects, electrical engineers, civil engineers, and contractors involved in warehouse electrical infrastructure planning and installation.

Electrical Cable Routing AutoCAD Plan Warehouse LV Duct Bank

Explore Rashmi Solanki’s CAD drawings with 3823 ready-to-use files on Cadbull.

Rashmi Solanki

Rashmi Solanki

3823
