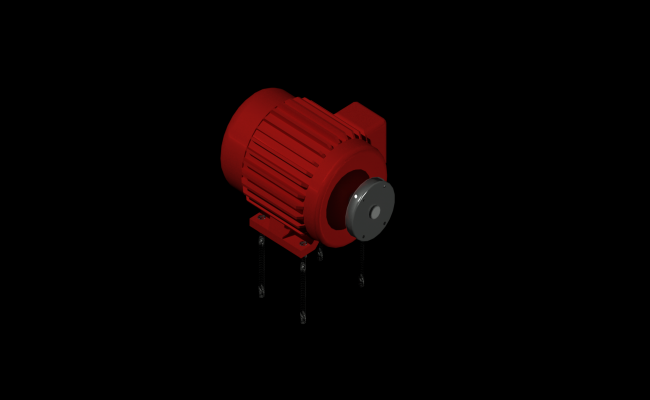

its motor drawing is draft in the autocad 2020.in this drawing motor with nut & bolt to use in your drawing.
n electric motor is an electrical machine that converts electrical energy into mechanical energy. most electric motors operate through the interaction between the motor's magnetic field and electric current in a wire winding to generate force in the form of torque applied on the motor's shaft. electric motors can be powered by direct current (dc) sources, such as from batteries, motor vehicles or rectifiers, or by alternating current (ac) sources, such as a power grid, inverters or electrical generators. an electric generator is mechanically identical to an electric motor, but operates with a reversed flow of power, converting mechanical energy into electrical energy.

3d Autocad Motor Drawing

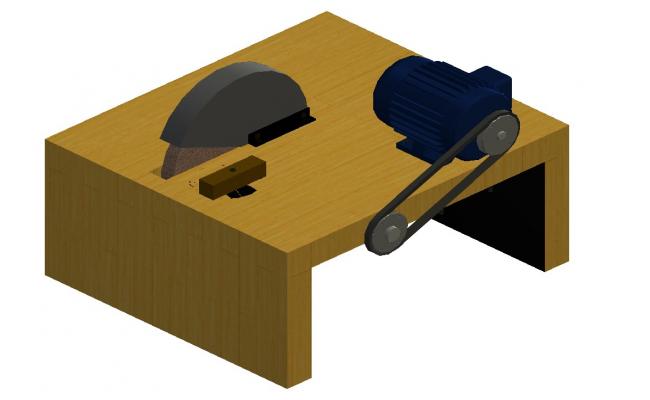

this is the a one type grinding machine. we made this machie for macking a angle of cutting tools. its very simple and easy process.
in this project we use a angle plate for any angle and one wooden block. its application is less time consuming and no need to experiance to handle the machne.

Universal Grinding Machine
