This AutoCAD-DWG file represents a detailed architectural plan of a narrow<a href="https://cadbull.com/Bungalows" rel="noopener noreferrer" target="_blank"> bungalow l</a>ocated in Ahmedabad, Gujarat. The <a href="https://cadbull.com/Architecture-House-Plan-CAD-Drawings" rel="noopener noreferrer" target="_blank">house design </a>covers a compact 21-foot span, efficiently planned to optimize limited space without compromising comfort. The ground floor layout includes a foyer, two bedrooms, a drawing room, a dining area, a kitchen with storage, and a wash area. The first floor plan features two bedrooms, one master bedroom with a balcony, a lounge area, and a general toilet. The layout emphasizes smooth spatial flow, natural lighting, and effective ventilation for modern urban living.This drawing is ideal for architects,<a href="https://cadbull.com/Interior-design" rel="noopener noreferrer" target="_blank"> interior designers</a>, and civil engineers looking for compact residential design inspiration. Each component is precisely dimensioned and layered for easy modification and presentation. The DWG file is compatible with AutoCAD, Revit, 3ds Max, and Google SketchUp, making it suitable for both 2D and 3D project visualization. Designed with functionality and aesthetic simplicity in mind, this narrow house plan demonstrates how thoughtful space planning can enhance livability within tight urban plots. Add this file to your CAD collection to explore efficient small-space residential design.

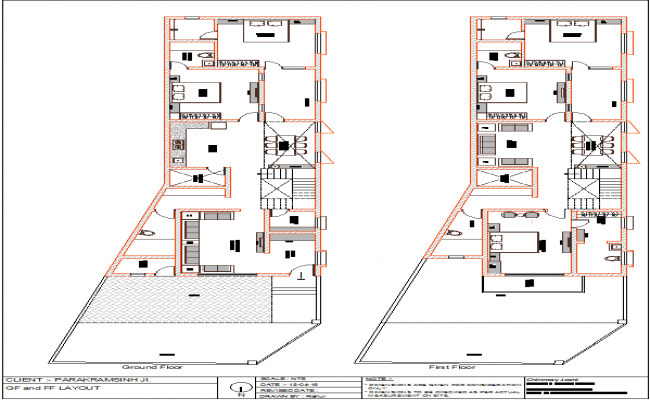

Narrow House CAD DWG with Ground and First Floor Residential Layout

The <a href="https://cadbull.com/Bungalows" rel="noopener noreferrer" target="_blank">3D Modern Bungalow </a>AutoCAD Drawing showcases a highly detailed and realistic visualization of a contemporary residential design. This drawing includes a complete 3D rendered exterior featuring the structure’s façade, balcony, boundary wall, and elevation details. The composition reflects a perfect balance of modern <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architecture</a> with elegant material usage and spatial arrangement. It is ideal for architects, civil engineers, and design students looking for inspiration in modern housing concepts.This AutoCAD file provides an architectural perspective on modern home layouts with advanced lighting and texturing techniques. The render helps visualize real-world finishes, proportions, and layout efficiency. From clean geometry to open spaces and sleek façade detailing, this drawing demonstrates a refined example of modern residential planning and visual presentation. Professionals can use this model to study scale, elevation, and 3D visualization techniques for modern urban homes.

3D Modern Bungalow AutoCAD Drawing Showing Exterior Render Design
