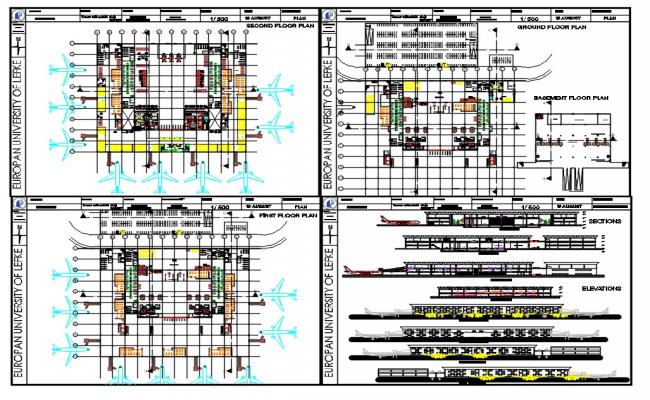

This Airport Terminal Final Plan CAD Drawing presents a comprehensive <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architectural </a>layout designed at a 1:500 scale, including basement, ground floor, first floor, and second floor plans. The drawing illustrates detailed passenger circulation areas, check-in counters, security zones, waiting lounges, boarding gates, commercial spaces, baggage handling areas, and administrative offices. Aircraft parking positions, apron layouts, taxiway alignments, and terminal access routes are clearly represented. All internal grids, structural columns, <a href="https://cadbull.com/Autocad-Furniture-Blocks--&amp;-DWG-Models" rel="noopener noreferrer" target="_blank">furniture </a>layouts, and service zones are precisely marked, making this DWG file suitable for large-scale airport infrastructure planning and development.

Airport Terminal Final Plan CAD Drawing with Sections at 1:500 Scale
