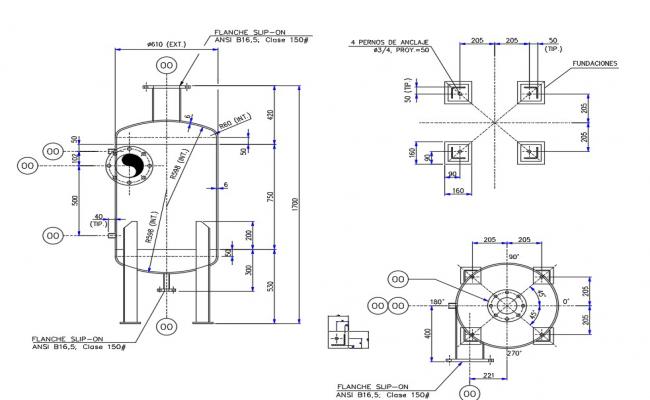

This AutoCAD file presents a complete water storage tank design, including plan, elevation, sectional <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank">detail</a>, and foundation layout with dimensional specifications. The vertical cylindrical tank is designed with an overall height of 1700mm and an internal diameter of 610mm. The drawing includes a shell thickness indication of 6mm, a curved head profile with R598 internal radius, and a bottom support base frame. Flange slip-on connections are specified as ANSI B16.5 Class 150 with top and bottom nozzle positions clearly marked. The sectional view shows inlet and outlet piping levels, 420mm top clearance, 750mm mid height division, and support leg spacing for <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">structural </a>stability.The foundation plan includes four anchor bolts of 3 by 4 inch diameter with a projection of 50mm and footing dimensions of 205mm by 205mm spacing. Base plate layout, bolt positioning at 90-degree intervals, and circular flange detailing are clearly illustrated for fabrication accuracy.&nbsp;

Water Storage Tank Design with Plan Section and Foundation Details
