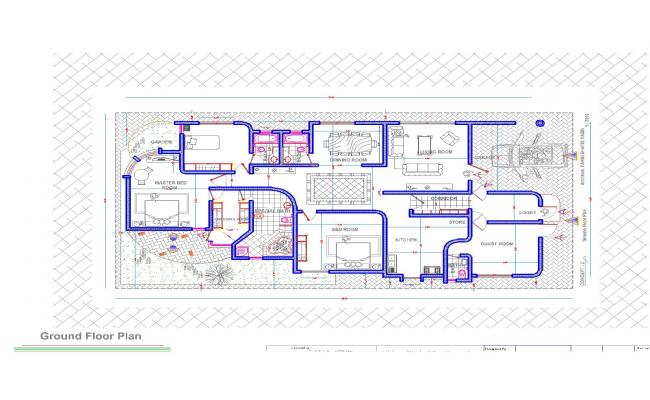

This AutoCAD drawing shows a small villa ground floor plan with detailed room layout and clear dimensional planning. The design includes master bedroom, guest room, additional bedroom, <a href="https://cadbull.com/Interior-design/Drawing-room" rel="noopener noreferrer" target="_blank">living room</a>, dining area, kitchen, store, lobby, and attached bathrooms. The layout also features garage space, <a href="https://cadbull.com/DWG-Blocks/Garden" rel="noopener noreferrer" target="_blank">garden </a>area, and internal circulation paths with curved wall design elements. All room sizes, wall thickness, and door positions are clearly marked to support accurate planning using dwg files and AutoCAD files.

Small Villa Ground Floor Plan With Room Layout And Dimensions

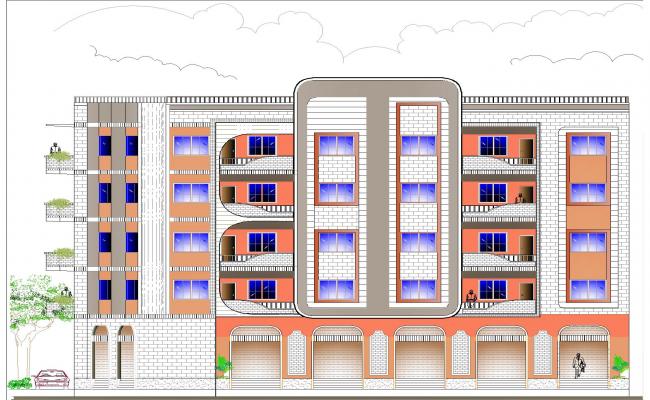

This AutoCAD drawing presents a residential <a href="https://cadbull.com/Cad-Architecture/Apartment-Flat" rel="noopener noreferrer" target="_blank">building </a>elevation plan designed for hot climate conditions with G plus 4 floors layout. The ground floor is planned for commercial use with multiple shop units and a separate main entrance for residential access. The elevation shows balcony projections, <a href="https://cadbull.com/DWG-Blocks/Door-and-windows-plan-details-cad" rel="noopener noreferrer" target="_blank">window </a>placements, façade detailing, and vertical circulation alignment. Upper floors include first floor with 3 flats and second to fourth floors with 4 flats each, all clearly organized with proportional dimensions.

Residential Building Elevation Plan G Plus 4 Floors With Dimensions
