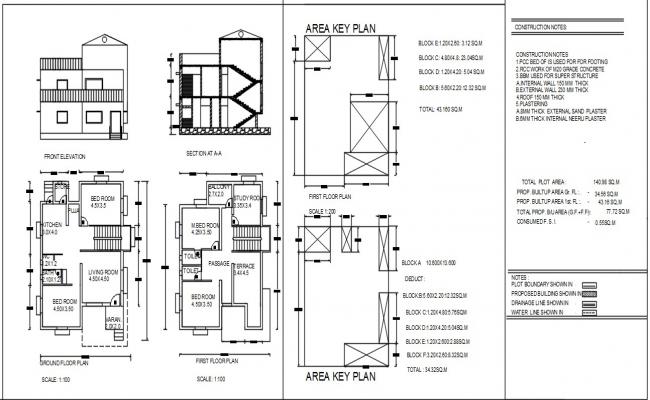

Residential building plan drawing presenting <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank">detailed </a>ground floor plan, first floor plan, elevation, and building section layout with dimensional planning. The ground floor layout includes a living room 4.50 x 4.50 m kitchen 3.00 x 4.00 m, a <a href="https://cadbull.com/Interior-design/Master-bedroom" rel="noopener noreferrer" target="_blank">bedroom </a>space measuring 4.50 x 3.50 m, and a verandah area 2.00 x 2.00 m. Circulation spaces, stair placement, and internal room arrangement are clearly defined to explain residential floor planning. The drawing also presents door openings, wall alignment, and passage connectivity between rooms, helping architects understand spatial planning within the residential building layout.

Residential Building Plan With Ground First Floor Elevation Section
