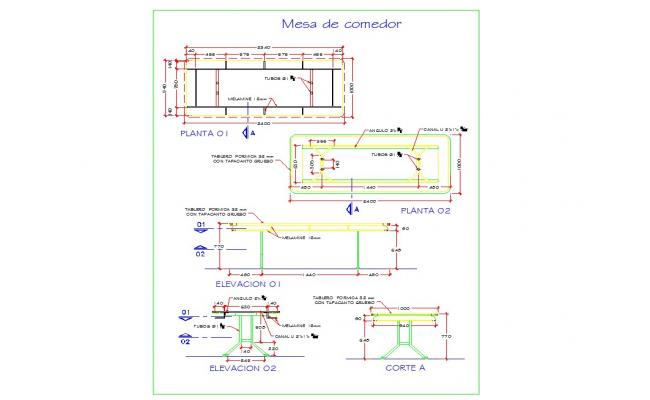

This dining table design plan, 2400x1000mm, with elevation section <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank">details</a>, provides a comprehensive technical layout prepared for architects, interior designers, civil engineers, and furniture designers working with AutoCAD and similar design software. The drawing presents a clear plan view with accurate dimensions of 2400 mm length and 1000 mm width, showing the complete tabletop layout and internal frame arrangement. The plan also includes material indications such as melamine board thickness, tubular steel members, and channel supports used for the structural framework of the table. Detailed dimension annotations define spacing, support placement, and fabrication alignment, helping professionals understand the complete construction methodology and proportional layout required for <a href="https://cadbull.com/Autocad-Furniture-Blocks--&amp;-DWG-Models" rel="noopener noreferrer" target="_blank">furniture </a>fabrication.

Dining Table Design Plan 2400x1000mm With Elevation Section Details
