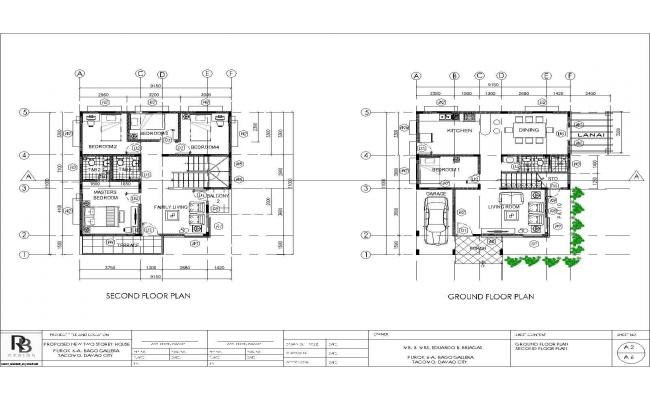

This two-storey residential floor plan drawing presents <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank">detailed </a>ground floor and second floor layouts with accurate dimensions for efficient house design and execution. The two-storey residential floor plan illustrates space distribution, including a living room, a kitchen, a dining area, a <a href="https://cadbull.com/Interior-design/Master-bedroom" rel="noopener noreferrer" target="_blank">bedroom</a>, a garage, and a porch on the ground floor, along with multiple bedrooms, a family living area, a balcony, and a terrace on the upper floor. The layout clearly defines room sizes, wall placements, door and window positions, and circulation paths for functional planning.

Two storey residential floor plan layout with dimensions detail

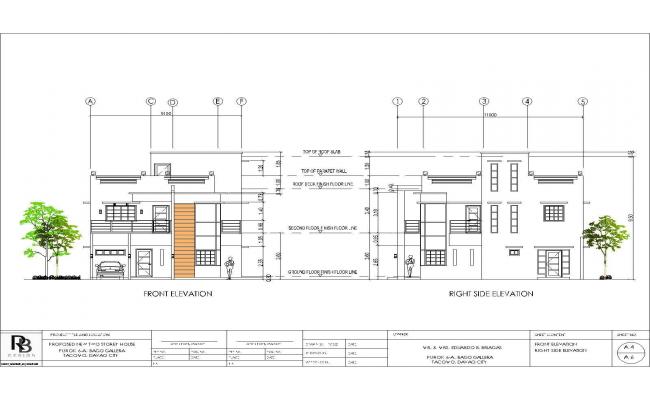

This two-storey residential plan drawing provides <a href="https://cadbull.com/Detail" rel="noopener noreferrer" target="_blank">detailed </a>elevation and sectional views with accurate dimensions for residential building design and execution. The two-storey residential plan illustrates front elevation and right side elevation with clear height levels, floor line markings, parapet wall, and roof slab details. The drawing shows door and window placement, balcony elements, <a href="https://cadbull.com/Construction-Cad-Drawing/Stair-construction-detail-drawing" rel="noopener noreferrer" target="_blank">staircase </a>positioning, and façade design for proper visualisation.

Two storey residential plan elevation section with dimensions
