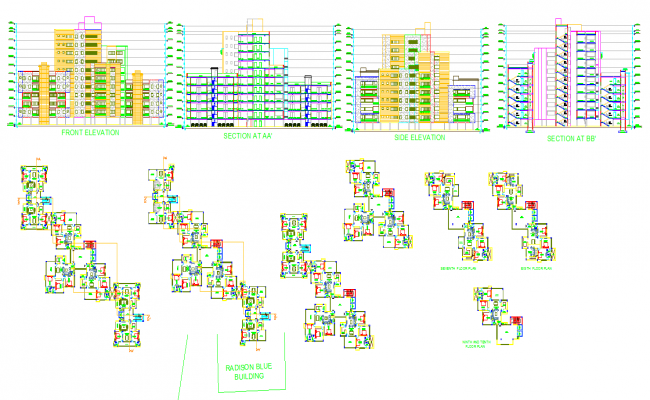

This AutoCAD apartment building DWG file features a detailed <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architectural </a>layout of a 50-unit residential project, showcasing floor plans, sections, and rendered elevations. The drawing includes a complete arrangement of living units, circulation spaces, and stairways designed for maximum functionality and aesthetic appeal. The front and side elevations provide a clear <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">structural </a>and visual representation of the building’s design, while the sectional views highlight the vertical organization and material coordination.Each apartment layout is meticulously dimensioned, ensuring accurate representation of space usage for bedrooms, living areas, and utility zones. The plan also incorporates parking areas, corridor networks, and access points for convenient movement. This DWG file is ideal for architects, designers, and civil engineers working on multi-unit residential <a href="https://cadbull.com/Projects" rel="noopener noreferrer" target="_blank">projects</a>, offering editable layers for customization and presentation. The file supports seamless integration with AutoCAD, Revit, and SketchUp, making it perfect for both educational and professional use. Its high-clarity annotations and symbols simplify workflow while maintaining precision in design development.

Apartment Building 50 Unit AutoCAD Drawing with Plan and Elevation

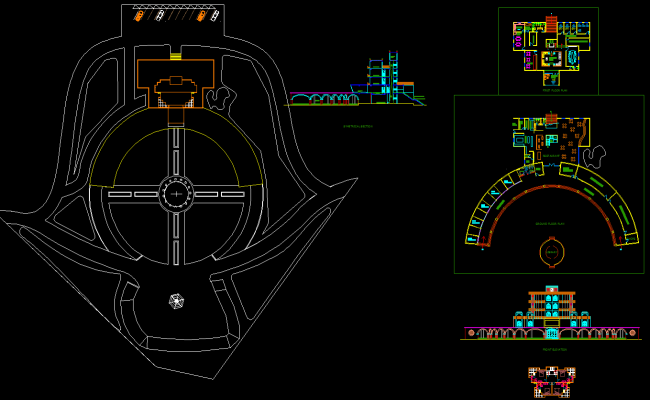

This State Cultural Center AutoCAD DWG file presents a complete <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architectural </a>layout, including the floor plan, sectional drawing, and front elevation. The design represents a state-level cultural complex located in the capital, featuring a circular master layout with central symmetry and defined pathways. The structure includes official accommodation facilities for government officers and dignitaries, along with a dedicated restaurant that serves traditional dishes representing the culture of the state.The DWG file also provides detailed measurements, entry circulation, and <a href="https://cadbull.com/Cad-Landscaping" rel="noopener noreferrer" target="_blank">landscaping </a>layout, ideal for architects and planners involved in public infrastructure and institutional <a href="https://cadbull.com/Projects" rel="noopener noreferrer" target="_blank">projects</a>. With its precise AutoCAD annotations, this file is suitable for concept presentations, 3D visualization, and design analysis. Download this State Cultural Center CAD drawing from Cadbull.com to explore an ideal example of architectural planning for cultural and official government spaces.

State Cultural Center AutoCAD DWG with Floor Plan and Elevation
