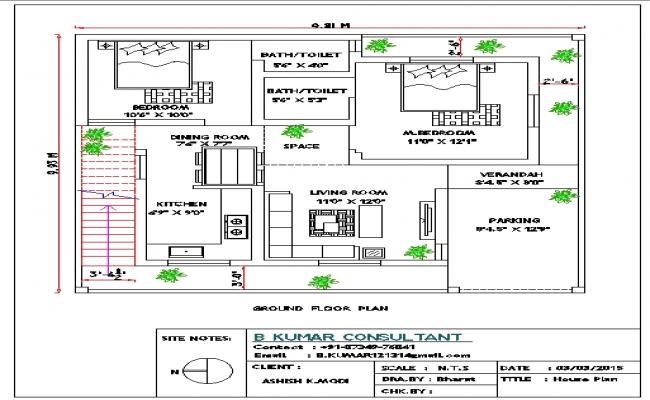

This 9x9 m single-storey <a href="https://cadbull.com/detail/268759/Banglow-All-Side-View-Plan-Architectural-Design-AutoCAD-DWG-File" rel="noopener noreferrer" target="_blank">bungalow</a> plan presents a detailed residential floor layout with room dimensions and parking design. The ground floor plan includes a master bedroom, a bedroom, a living room, a dining area, a kitchen, a bathroom, a toilet, a verandah, a <a href="https://cadbull.com/detail/272530/staircase-detail-dwg-1-50-scale-multi-layout-ps04-plan-design" rel="noopener noreferrer" target="_blank">staircase</a>, and an open circulation area. Room measurements are clearly marked for accurate planning and construction understanding. The bungalow layout highlights functional zoning, furniture arrangement, and compact residential space utilization. Parking space and entrance connectivity are also included for practical accessibility. This single-storey bungalow floor plan supports architects and builders in residential planning and layout coordination projects.

9x9m Single Storey Bungalow Plan With Parking Layout Designs

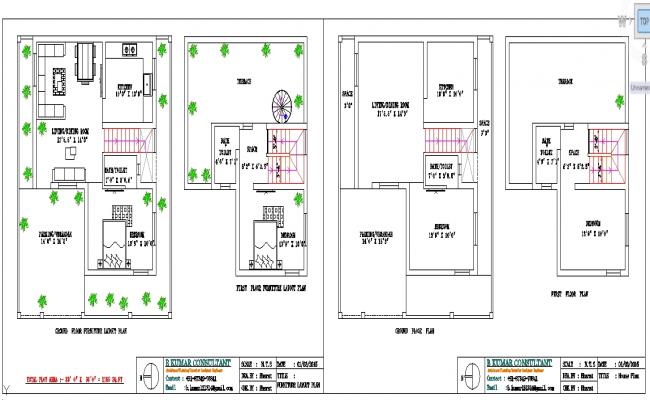

This House Plan DWG file provides a complete architectural and interior layout for modern residential <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction </a>projects. The drawing includes detailed ground floor and first floor plans with accurate room dimensions, structural grid references, and circulation pathways. It features a spacious living and dining room, a modular kitchen, bedrooms with attached bathrooms, a parking verandah, an internal staircase, a terrace area, and utility spaces. The file also includes <a href="https://cadbull.com/Autocad-Furniture-Blocks--&amp;-DWG-Models" rel="noopener noreferrer" target="_blank">furniture </a>layout plans showing the proper placement of seating, beds, dining tables, and storage units. All drawings are prepared using standard scaling, unit systems, and clear measurement annotations, making this house floor plan DWG suitable for professional design development and construction execution.

Duplex House Plan DWG with Room Dimensions and Furniture Layout
