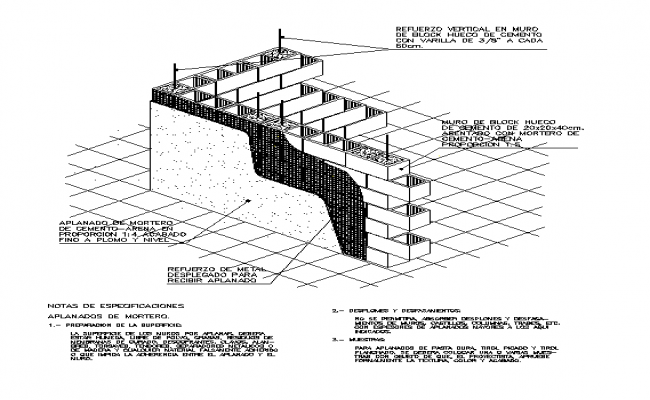

This AutoCAD-DWG file presents a detailed wall section drawing with architectural and <a href="https://cadbull.com/Construction-Cad-Drawing" rel="noopener noreferrer" target="_blank">construction</a> specifications for hollow cement block walls. The drawing includes reinforcement details, mortar plastering instructions, and block arrangement dimensions. It shows a hollow cement block wall (20x20x40 cm) reinforced vertically with 3/8” rebar placed every 80 cm, filled with cement-sand mortar in a 1:5 ratio. The isometric view illustrates the wall assembly from base to finish, highlighting the use of metal mesh reinforcement to receive plaster and ensure durability.This DWG file is an excellent reference for <a href="https://cadbull.com/Cad-Architecture" rel="noopener noreferrer" target="_blank">architects</a>, civil engineers, and construction professionals involved in <a href="https://cadbull.com/Structure-detail" rel="noopener noreferrer" target="_blank">structural</a> wall detailing and material specification. It provides all necessary notations such as plaster preparation, reinforcement mesh, mortar thickness, and vertical joint alignment. Designed for precision, the drawing follows standard construction practices and can be edited easily using AutoCAD or imported into Revit and SketchUp for detailed modeling. This file helps users achieve accurate wall reinforcement and plaster detailing in both residential and commercial building projects.

Wall Detail CAD with Block Reinforcement and Mortar Plaster Section
