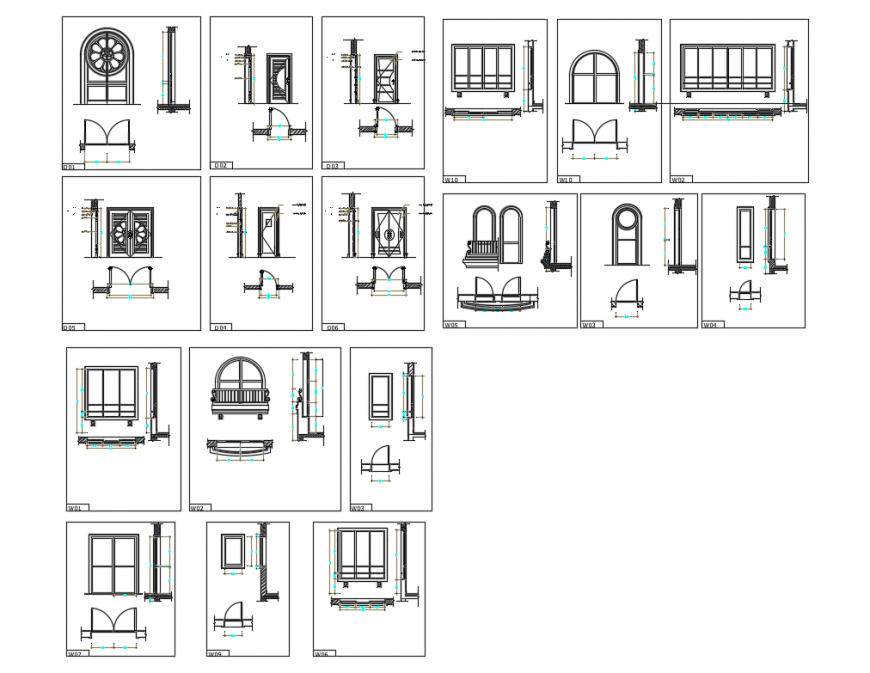

Doors and windows elevation and installation details of villa dwg file


Description

Doors and windows elevation and installation details of villa that includes a detailed view of door elevation, window elevation, wires and fences, galvanized mesh, clamps galv, aluminum couplings, amarres galv, rh place 1 into the spot and 2 in the corners, pe as reinforcement in straight sections, technical specifications, model selection, symbology details, dimensions details, joints details and much more of door installation and window installation details.




File Type: DWG File ID: 109332

Uploaded by:


Eiz Luna
New-Zealand
