Wooden Roof Truss Construction Details With Section And Support Layout

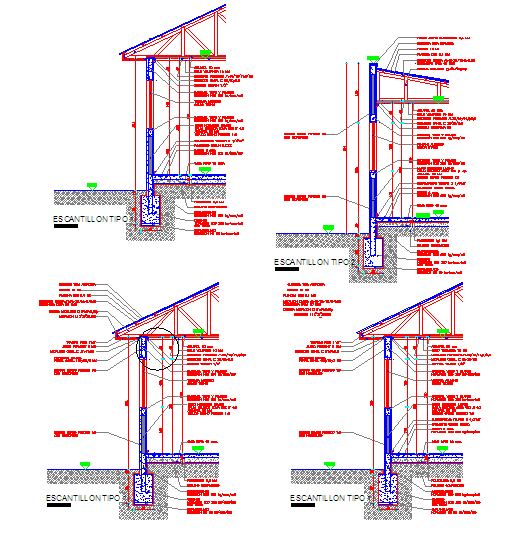

This AutoCAD drawing presents detailed wooden roof construction information prepared for accurate structural execution and roof assembly. The drawing includes multiple sectional views of timber roof truss systems showing roof slope, rafter alignment, purlin placement, and connection details. Structural members such as wooden beams, vertical posts, roof supports, and anchoring elements are illustrated with clear dimensions and material references. Foundation connection points, wall interface details, and load transfer paths from roof to footing are clearly marked for construction clarity.

Additional sections show different timber roof conditions with variations in slope, support height, and fixing methods. Roof covering layers, insulation space, and ceiling interface details are represented to support architectural and structural coordination. Each section includes precise level markings, centerlines, and construction notes for proper installation on site. This wooden roof truss AutoCAD drawing is suitable for residential, commercial, and utility buildings where timber roof structures are used, and accurate detailing is required for safe and durable construction.
