Door and Window DWG File with Residential Grill and Glass Details

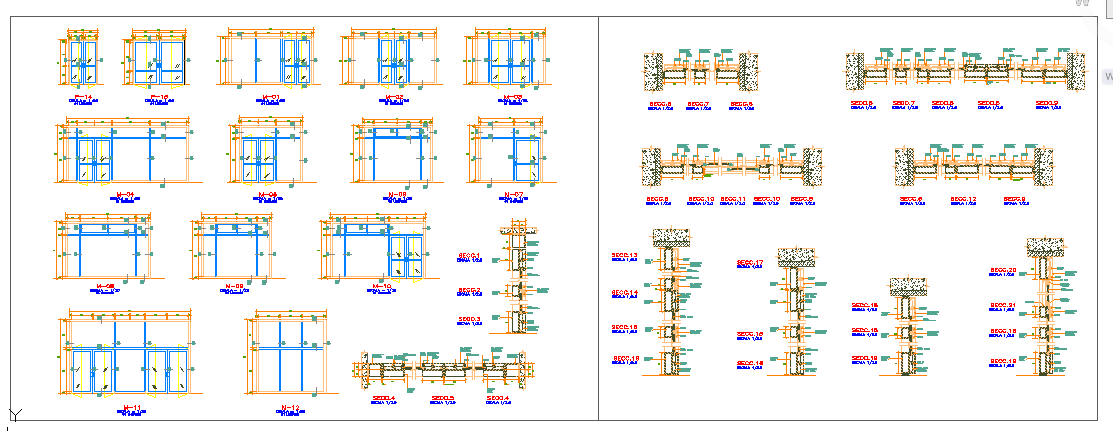

This Door and Window DWG file offers detailed drawings for residential design projects, including open glass windows, fixed panels, and grill gates. Each component is dimensioned precisely to help architects, civil engineers, and interior designers integrate doors and windows into their layouts efficiently. The DWG file includes frontal, sectional, and side views, allowing users to visualize door frames, window openings, and grill designs accurately.

Professionals can use this DWG file to plan and execute residential projects with confidence, as it provides exact measurements for door widths, window heights, fixing points, and frame placements. The file is suitable for AutoCAD workflows and supports modifications to fit different residential design requirements. Whether for drafting, detailing, or project presentation, this resource saves time while enhancing accuracy in designing doors, windows, and grills. The included annotations, fixing details, and dimensioned views ensure that every element is correctly represented for practical implementation.
