Small Building Plan Elevation Section Detail with Roof Structure

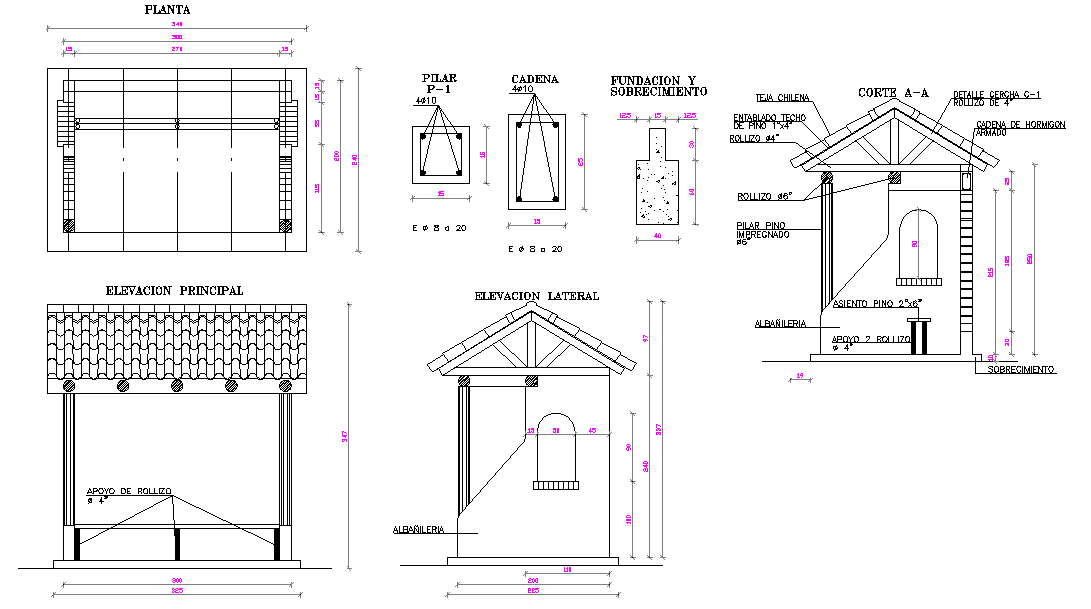

This building construction detail drawing presents a complete AutoCAD layout showing plan elevation and sectional information for a small structure. The plan view illustrates an overall size of approximately 3400 mm width and 2710 mm depth with defined internal spacing. Front and side elevations describe column height roof slope and opening proportions for structural balance. Column details indicate typical 200 mm by 200 mm pillar sizing with reinforcement reference. Foundation and plinth details show stepped footing with an approximate base width of 1250 mm for proper load transfer. Roof section explains timber truss arrangement tile roofing support members and beam connections. This building detail AutoCAD file supports accurate architectural and civil execution for compact structure planning.
