Metallic Gate Design Detail with Steel Sections and Concrete Footing

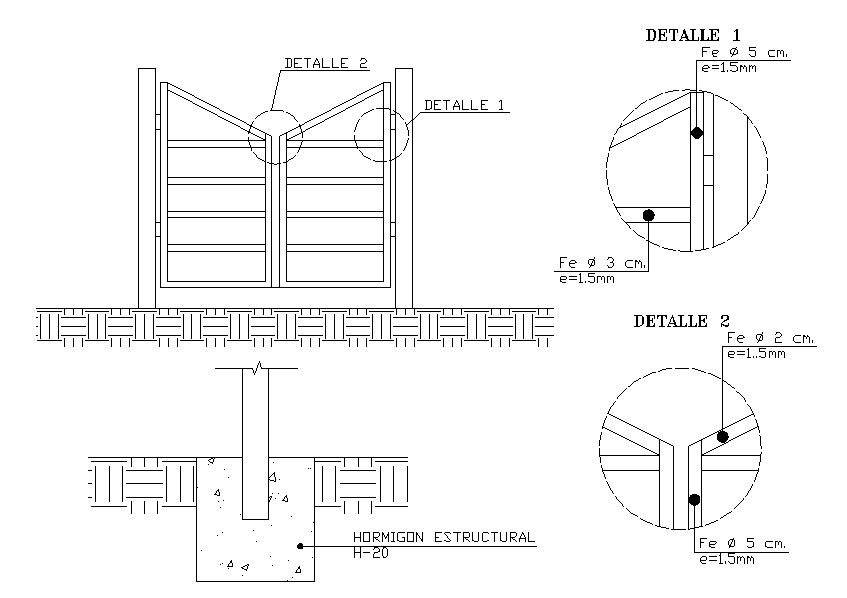

This metallic gate design detail drawing presents a precise AutoCAD construction layout for a steel gate with structural support. The drawing includes front elevation showing gate leaf alignment horizontal steel members and vertical posts. Detailed connections illustrate steel pipe sections with diameters of 20 mm 30 mm and 50 mm and plate thickness around 1.5 mm. Foundation detail shows reinforced concrete footing using structural concrete grade H 20 with embedded steel post fixing. Joint details highlight welded connections and load transfer points. Ground interface and paving connection are clearly indicated. This metallic gate design AutoCAD file supports accurate fabrication and installation for residential and boundary gate construction projects.
