House Detail Design Drawing with Floor Plans Elevation Section

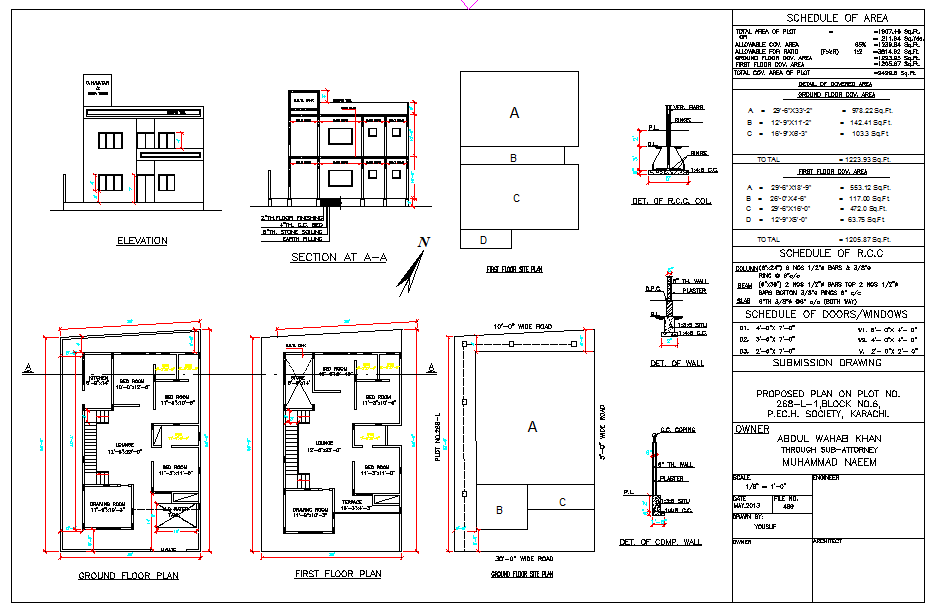

This house detail design drawing is created in AutoCAD format and provides a complete residential drawing set, including plan, elevation, and section details. The drawing includes a ground floor plan and first floor plan with clearly defined room layouts such as living room, drawing room, bedrooms, kitchen, toilets, staircase, and circulation areas. All rooms are shown with accurate dimensions in feet and millimeters, along with wall thickness, door and window sizes, and internal movement clearances. The plan also indicates plot boundaries, road widths of approximately 30 feet and 15 feet, and building orientation for proper site planning and approval use.
