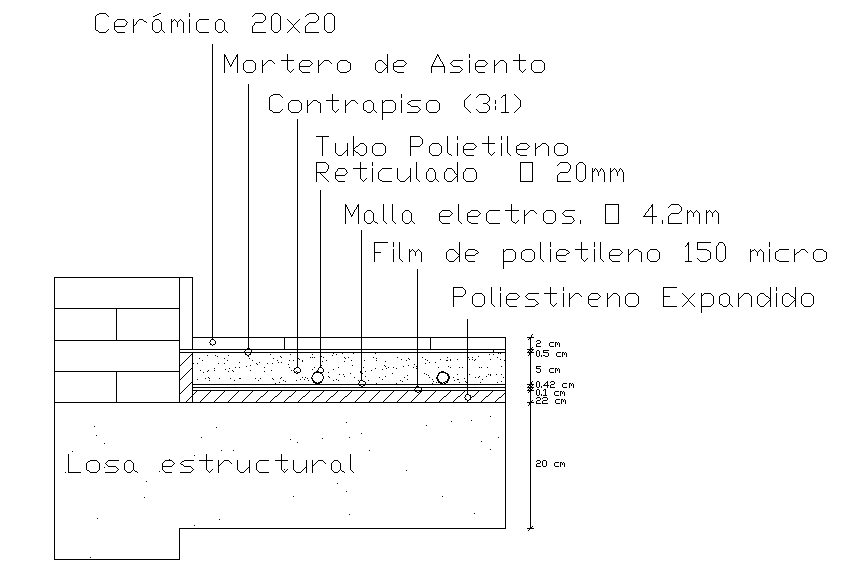

Floor Construction Detail Drawing with Layer Thickness Details

This floor construction detail drawing is a precise 0AutoCAD file showing a complete floor build-up with clearly defined material layers and thickness measurements. The drawing illustrates a ceramic floor finish of 20×20 cm, bedding mortar, leveling screed, and concrete subfloor with accurate depth references. It also includes technical layers such as polyethylene film of 150 microns, expanded polystyrene insulation, electro-welded mesh of 4.2 mm, and reticulated polyethylene pipe of 20 mm diameter. Each layer is labeled with exact thickness values in centimeters, helping users understand floor composition and construction sequence.
