Roof Structure DWG with Slab, Tubular Support, and Detail Sections

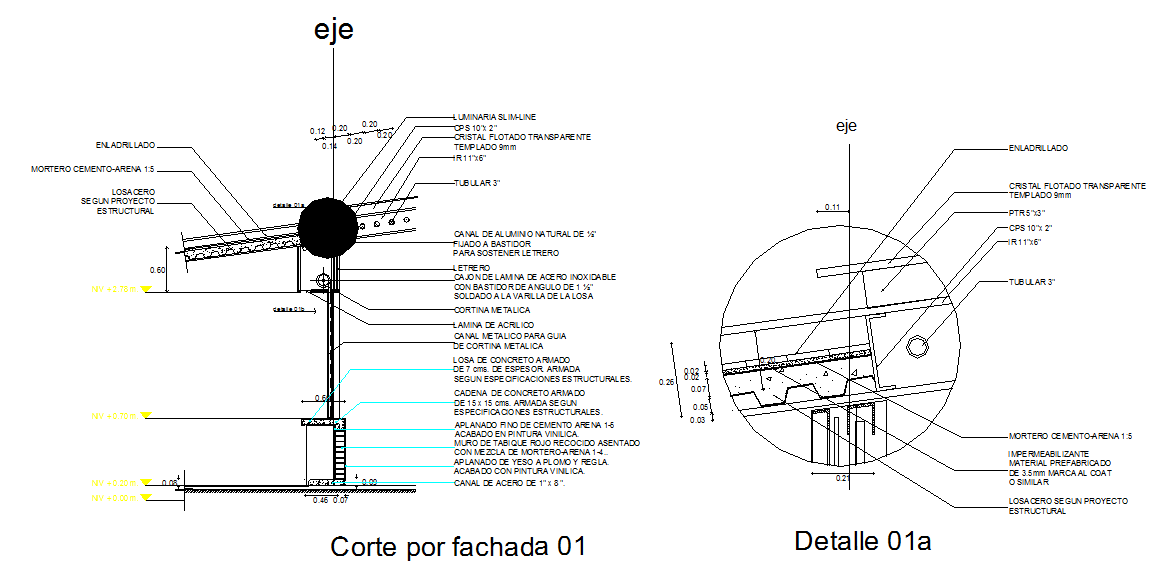

This Roof Structure DWG file provides a detailed drawing for residential and commercial roofing, including sectional views, tubular supports, slab thickness, and finish details. The drawing highlights critical measurements such as concrete slab thickness, tubular column dimensions, spacing between supports, and anchoring details. It also includes aluminum and acrylic panel placements, metal curtain guides, and reinforcement specifications. The file is ideal for architects, civil engineers, interior designers, and builders who need precise design information for construction or modeling.
