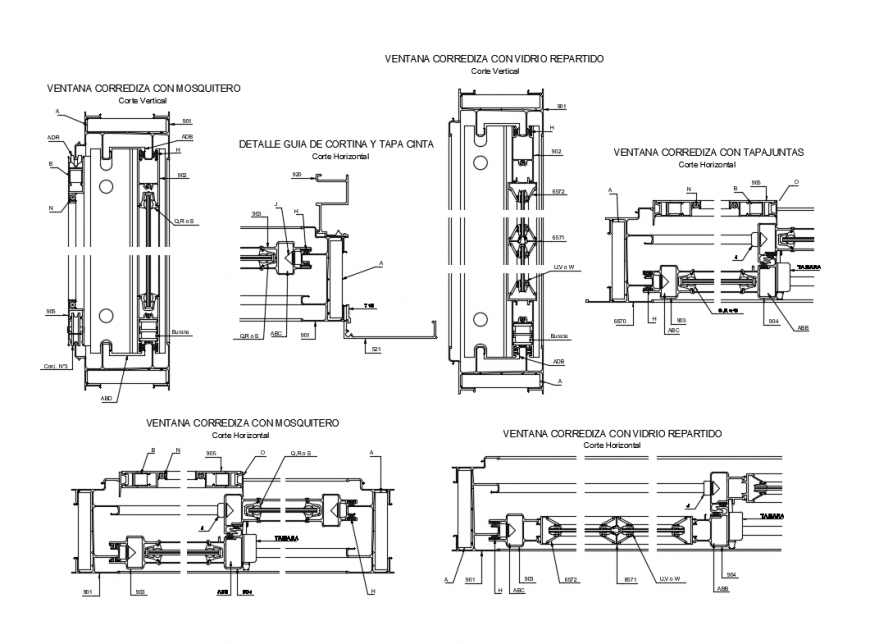

Sliding window installation cad drawing details dwg file


Sliding window installation cad drawing details that includes a detailed view of window elevation, wires and fences, galvanized mesh, clamps galv, aluminum couplings, amarres galv, rh place 1 into the spot and 2 in the corners, pe as reinforcement in straight sections, technical specifications, model selection, symbology details, dimensions details, joints details and much more of window installation and window installation details.

File Type: DWG File ID: 109334

Uploaded by:

Eiz Luna
