Structure Grill Detail with Dimensions and Sections in AutoCAD Format

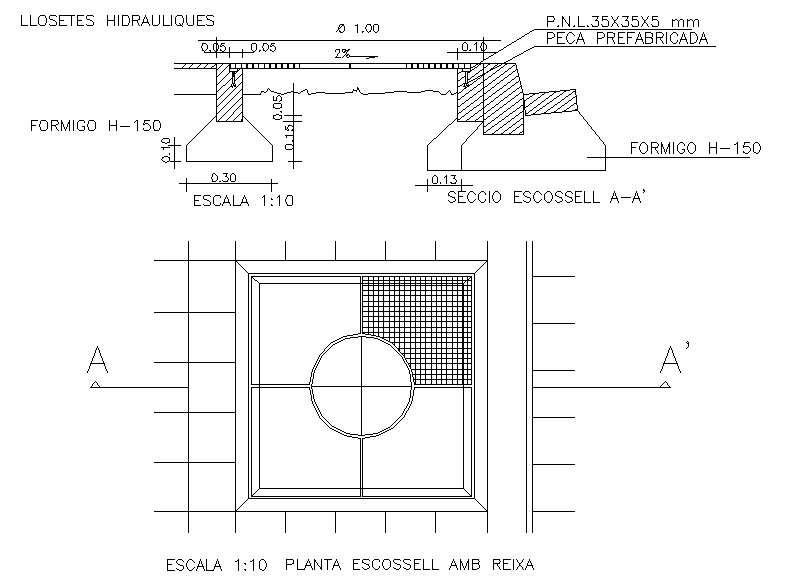

This AutoCAD DWG file presents a detailed structure grill design, including both plan and sectional views. The design showcases a reinforced concrete grill with precise dimensions for the prefabricated piece (P.N.L. 35x35x35x5 mm). The sectional view illustrates the thickness and shape of the material, including the H-150 concrete formwork, which is essential for structural integrity. This drawing is ideal for architects, civil engineers, and construction professionals working on structural designs involving concrete grills, ensuring accuracy and compliance with building standards.
