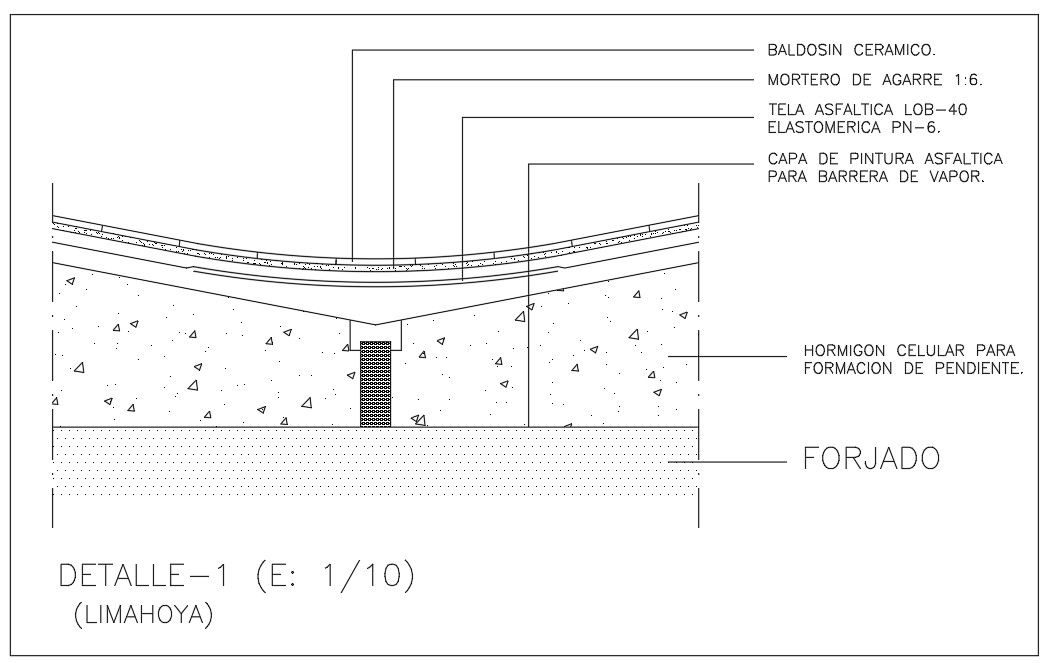

Detail of Flat Roof DWG Design with Ceramic, Asphalt Layers.

This DWG file provides a detailed design for a flat roof, showcasing various layers including ceramic tiles, a 1:6 mortar grip layer, asphalt paint for vapor barrier, and cellular concrete for slope formation. The design also includes precise structural details for the roof’s construction, ensuring proper water drainage and insulation. The layout is ideal for architects, engineers, and construction professionals working on roof design, material specification, and installation. This file is a comprehensive reference for creating an efficient and durable flat roofing system with clear specifications for each layer.
