Industrial Factory Plan CAD With Machinery Layout And Storage Zones

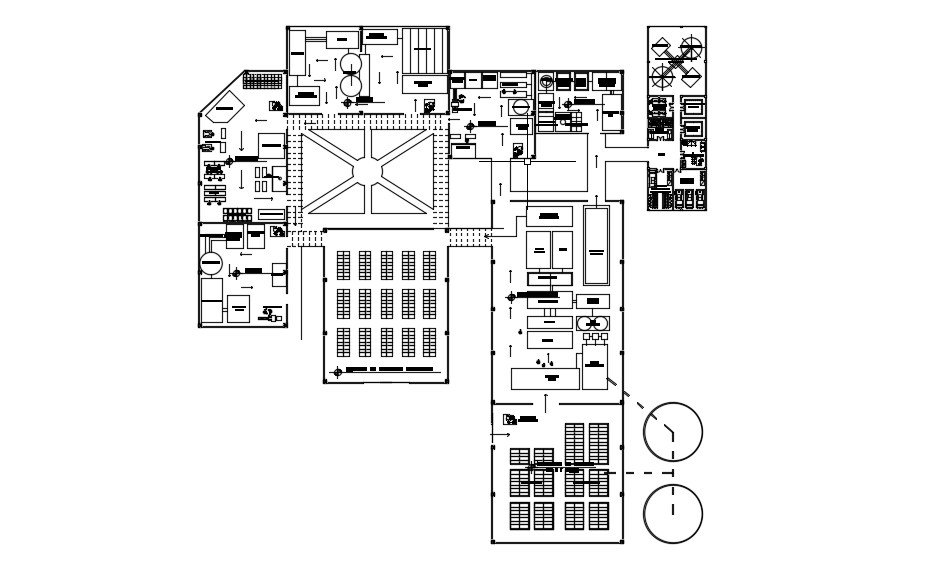

This Industrial Factory Plan CAD DWG file provides a detailed layout of a modern industrial facility, including production areas, machinery placement, storage zones, administrative offices, and circulation pathways. Standard measurements are indicated for precise planning, such as machine spacing of 1500 mm, storage racks 2000 x 800 mm, corridor widths of 1800 mm, and office areas around 4000 x 3500 mm. The drawing also highlights entry and exit points, workflow paths, and material handling routes to ensure efficient operations. All elements are scaled, layered, and properly annotated for professional industrial design and construction use.
