Retaining Wall Design DWG with RCC Section and Drainage Detail

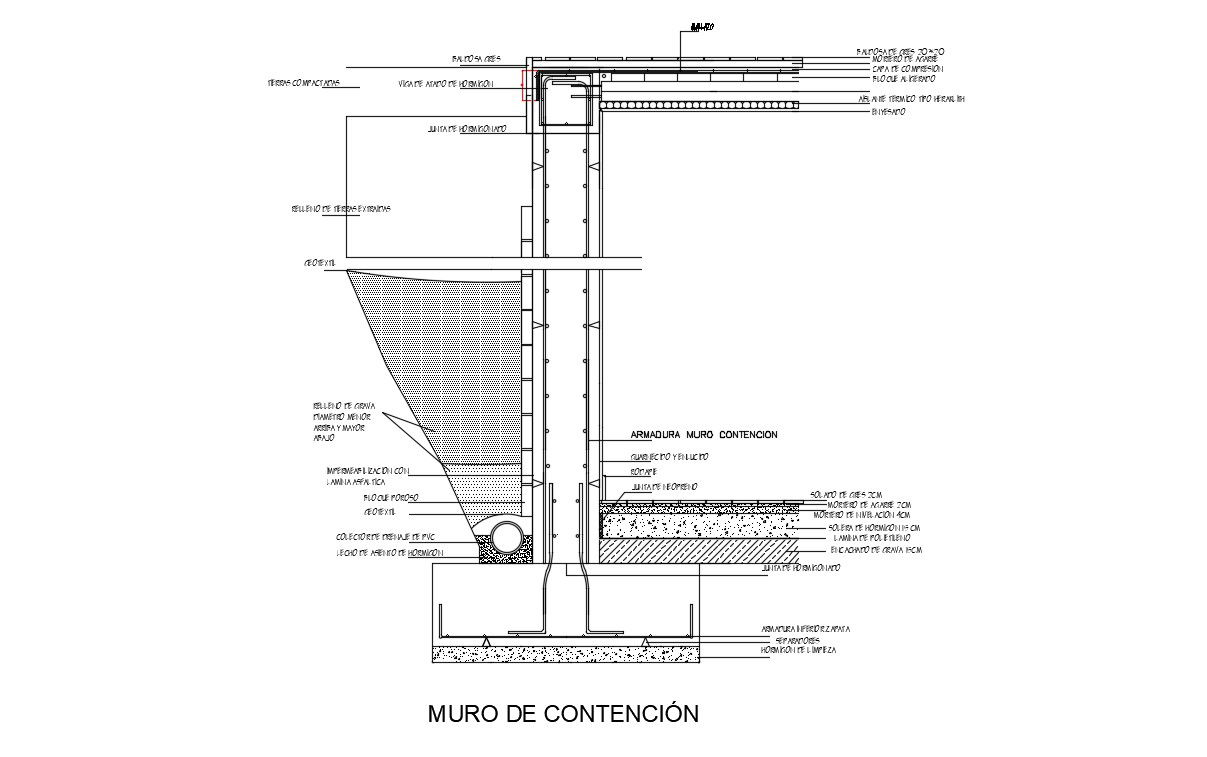

This Retaining Wall Design DWG File provides a detailed AutoCAD drawing for civil and structural engineering projects. The drawing includes a complete sectional view of the containment wall showing RCC structure, reinforcement arrangement, base footing, backfill layers, drainage pipe, filter media, waterproofing membrane, and plaster finish. It also highlights technical specifications such as concrete base thickness of approximately 300 mm, wall stem thickness of 200 mm, solera de hormigon layer of 150 mm, drainage pipe diameter of 100 mm, gravel filter thickness of 150 mm, and proper soil compaction levels. All components are clearly labeled to ensure safe load transfer and long-term stability.

This professional retaining wall drawing is suitable for civil engineers, architects, contractors, and site supervisors involved in slope protection, basement construction, and boundary wall projects. The DWG file is compatible with AutoCAD, Revit, 3ds Max, and SketchUp for easy editing and coordination with structural and architectural plans. With accurate scaling, organized layers, and clear detailing, this file helps reduce construction errors and improves site execution quality. It can be used for residential, commercial, and infrastructure projects. Subscribers can download this retaining wall design file to save drafting time, improve documentation, and ensure reliable structural performance.
