Suspended ceiling structure and construction details dwg file
Tags
Frequently Asked Questions

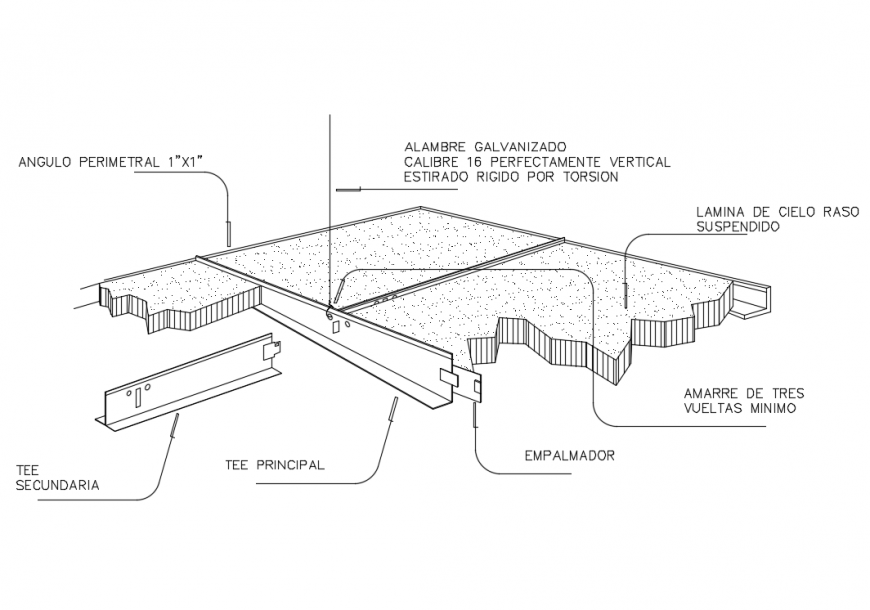

This AutoCAD DWG file includes a suspended ceiling structure with a 1x1 perimeter angle, main tee, secondary tee, tee connector, galvanized suspension wire, wire tie connection, and ceiling panel construction details for accurate drafting and installation.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description
Suspended ceiling structure and construction details that includes a detailed view of wire caliber perfectly vertical stretched rigid by torison, suspended sky cross sheet, perimeter angle, three tilt morning minimum, secondary tee, main tee and much more of ceiling details.
Uploaded by:
Eiz Luna
Tags
Frequently Asked Questions
This AutoCAD DWG file includes a suspended ceiling structure with a 1x1 perimeter angle, main tee, secondary tee, tee connector, galvanized suspension wire, wire tie connection, and ceiling panel construction details for accurate drafting and installation.
